Barndominium Floor Plans
30 barndominium and shop-house plans you can resize and customize, each with an approximate material list your lumber yard and steel supplier can quote from.
- Resize any plan
- Material list for supplier quotes
- Concept kit $59 CAD
- Built from a real Ontario barndominium
30 of 30 plans

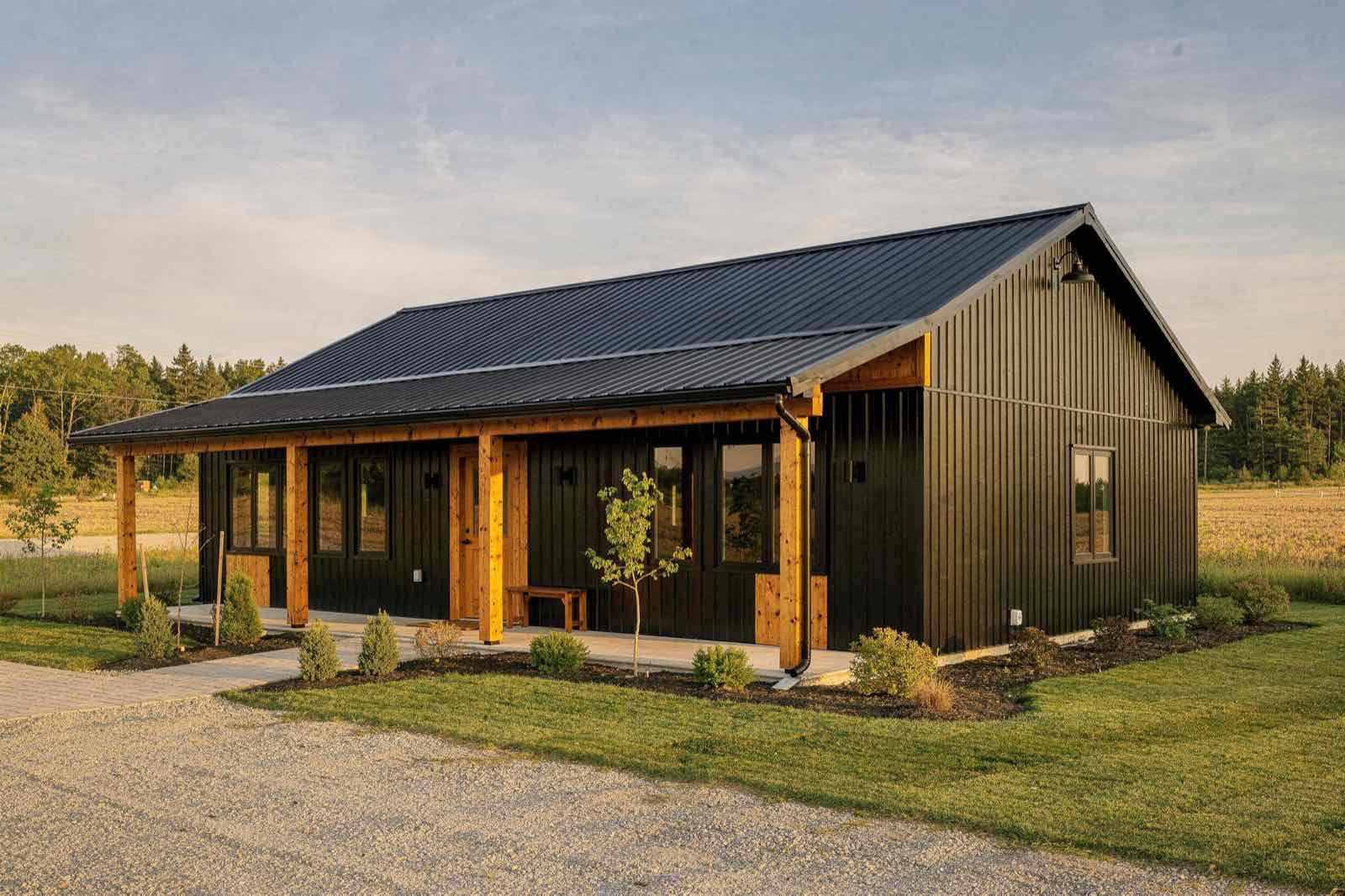

Cedar Compact
IF-10132 × 44 ft · Compact Living
- 1,408
- Sq. ft.
- 2
- Beds
- 1
- Baths
- —
- Shop

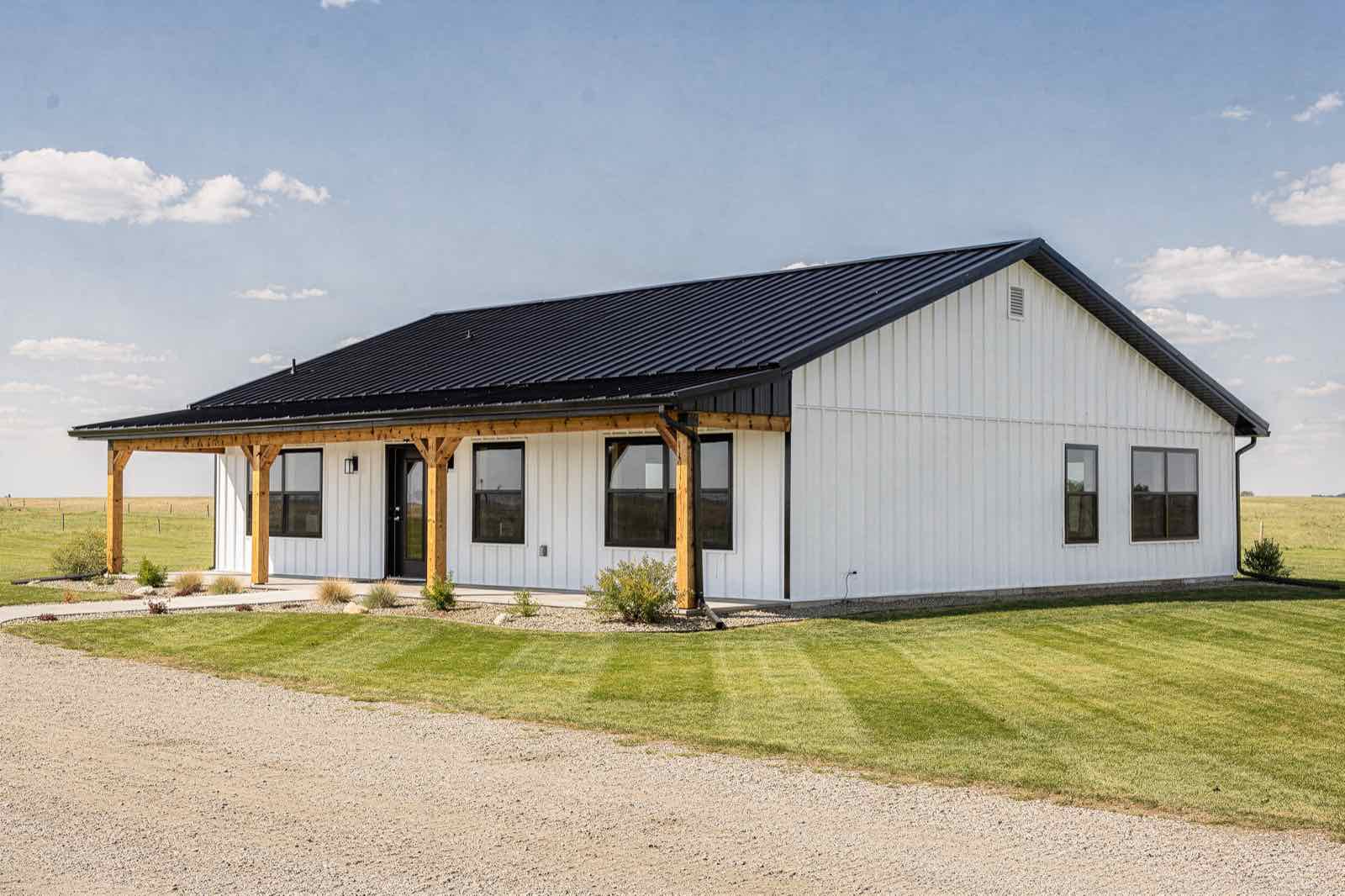

Willow Family
IF-10240 × 60 ft · Family Living
- 2,400
- Sq. ft.
- 3
- Beds
- 2
- Baths
- —
- Shop

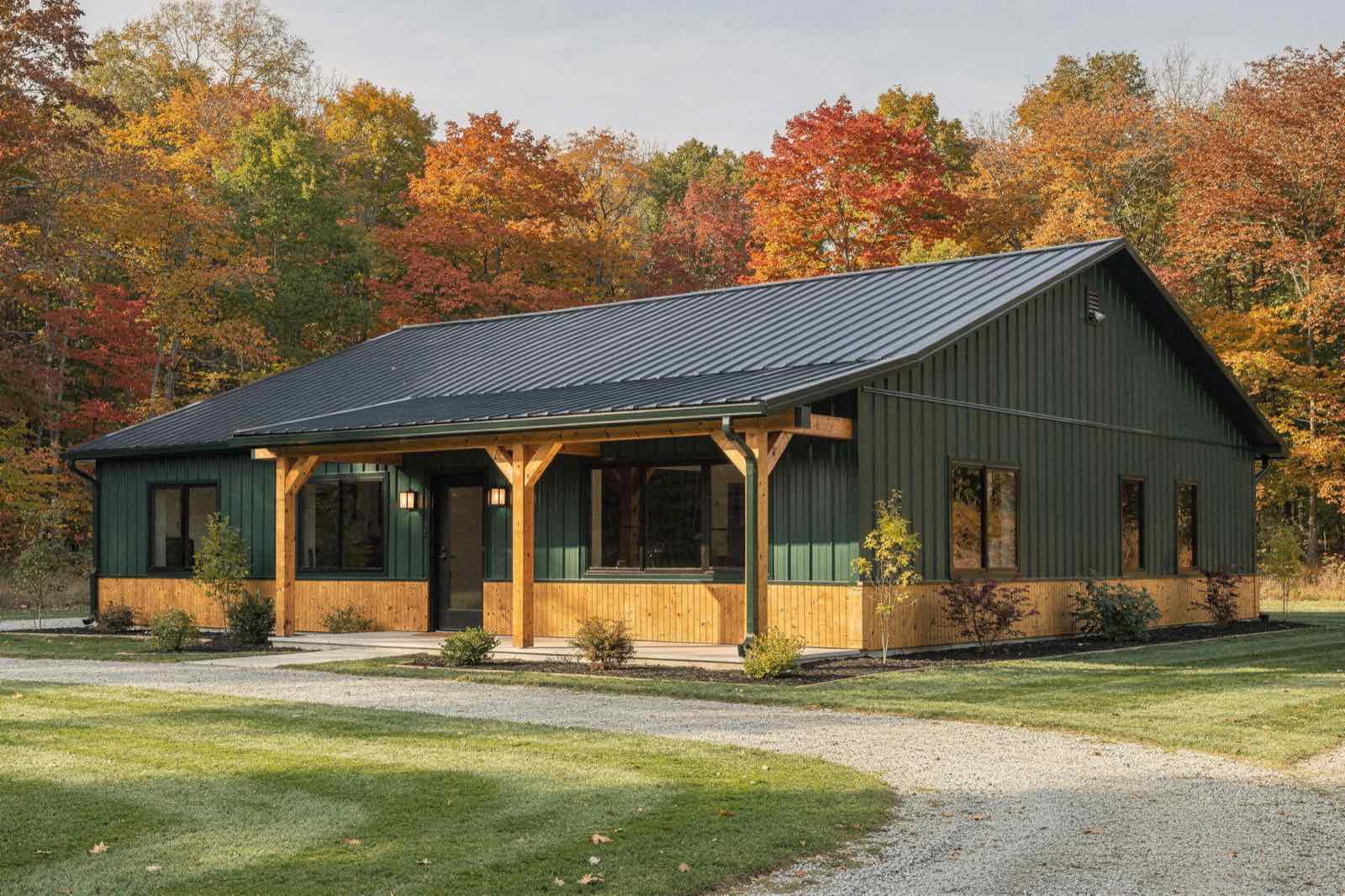

Ridgeview Ranch
IF-10344 × 64 ft · Family Living
- 2,816
- Sq. ft.
- 3
- Beds
- 2
- Baths
- —
- Shop

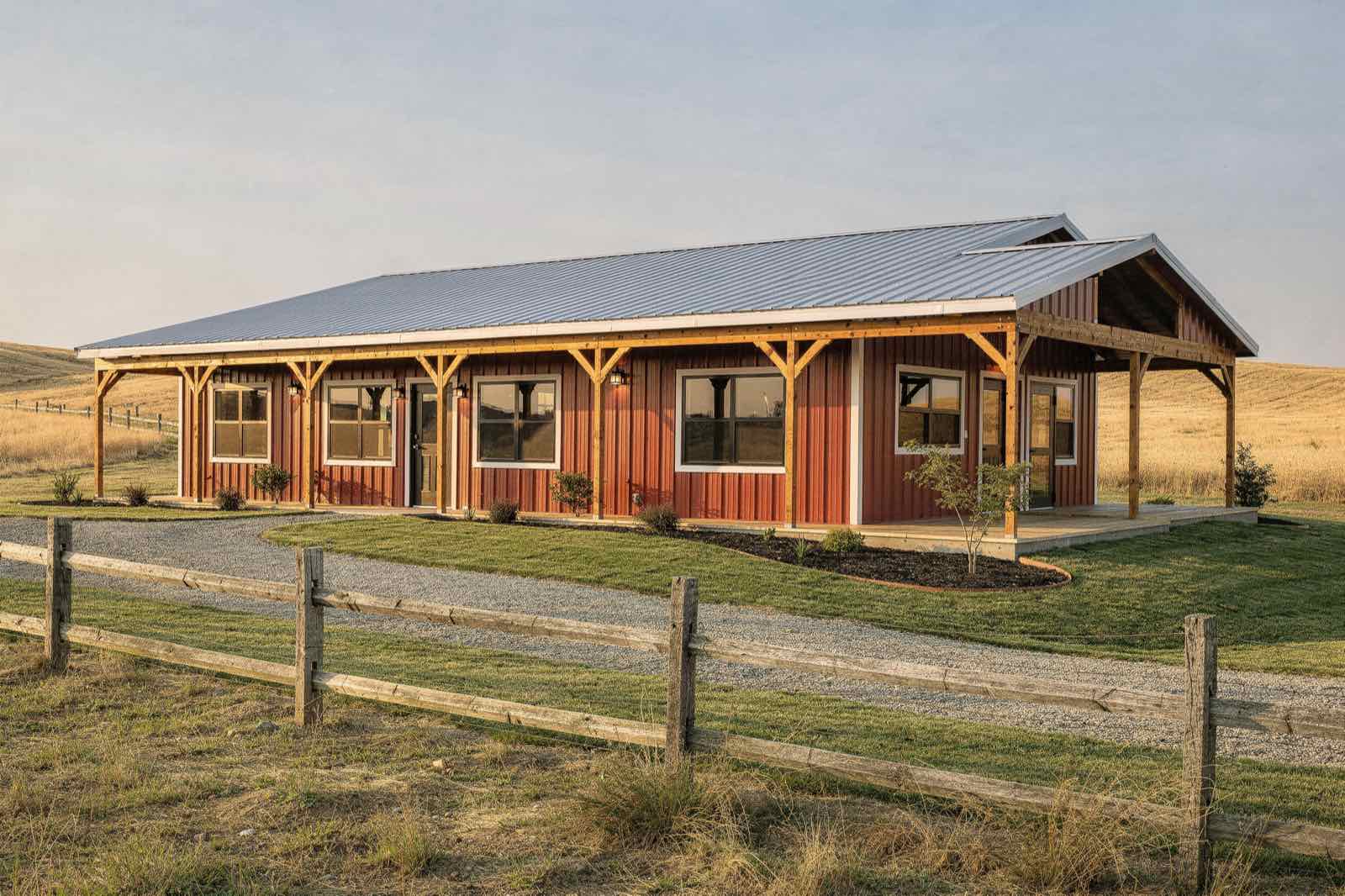

Legacy Four
IF-10448 × 72 ft · Family Living
- 3,456
- Sq. ft.
- 4
- Beds
- 3
- Baths
- —
- Shop

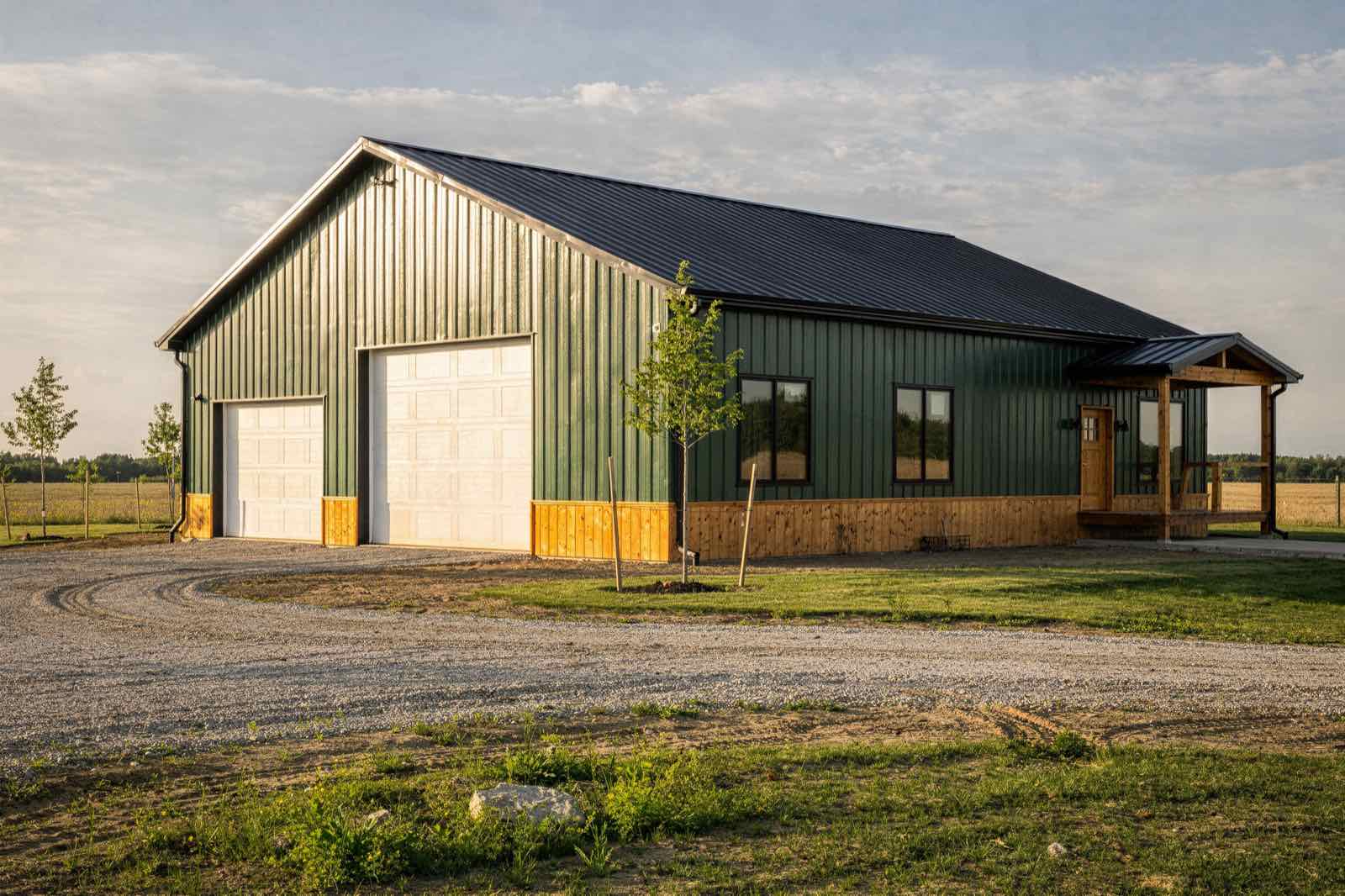

Forge Shop House
IF-10572 × 40 ft · Shop + Home
- 1,760
- Sq. ft.
- 2
- Beds
- 2
- Baths
- 1,120
- Shop

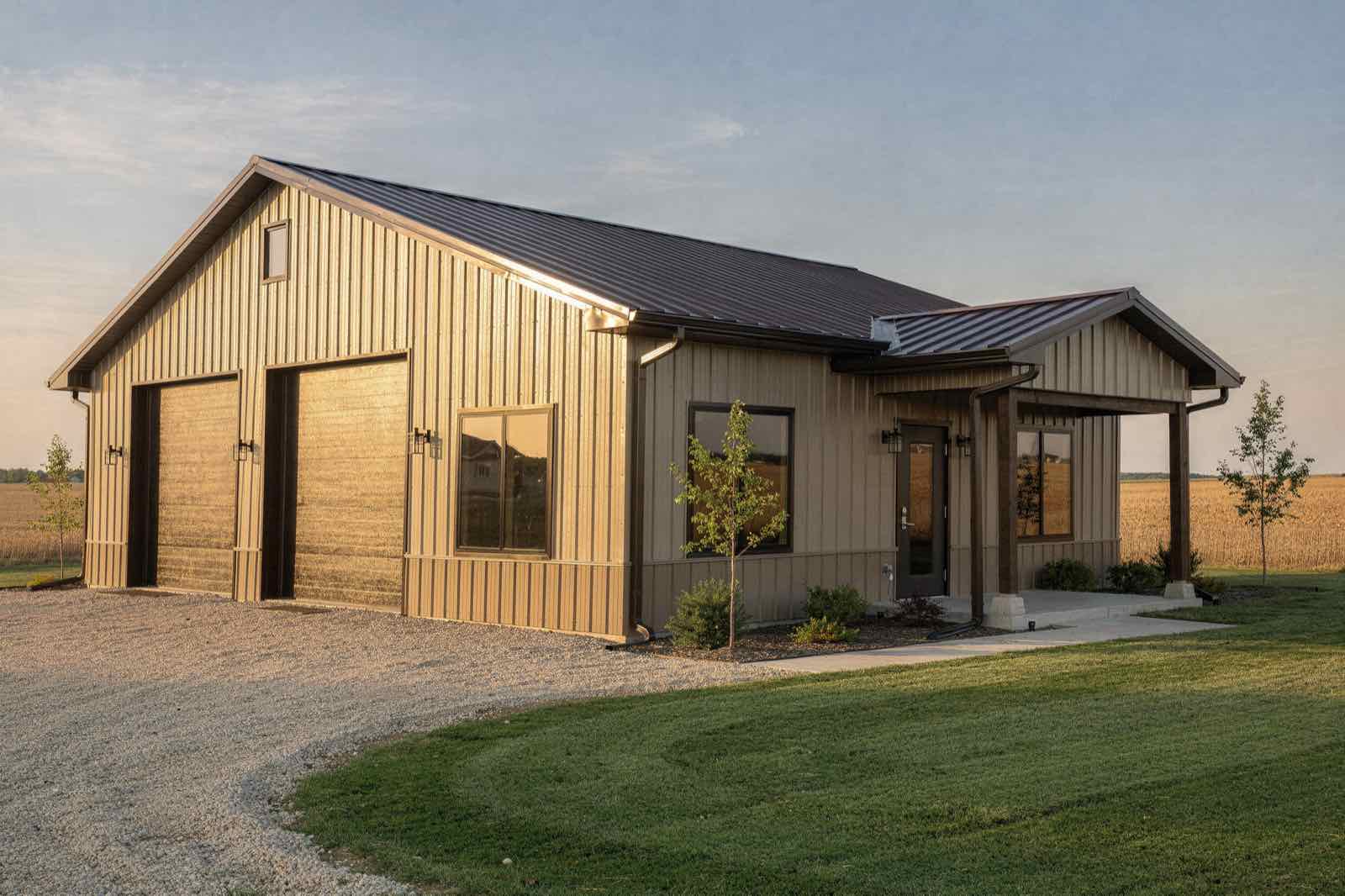

Tradesman 80
IF-10680 × 44 ft · Shop + Home
- 2,112
- Sq. ft.
- 2
- Beds
- 2
- Baths
- 1,408
- Shop

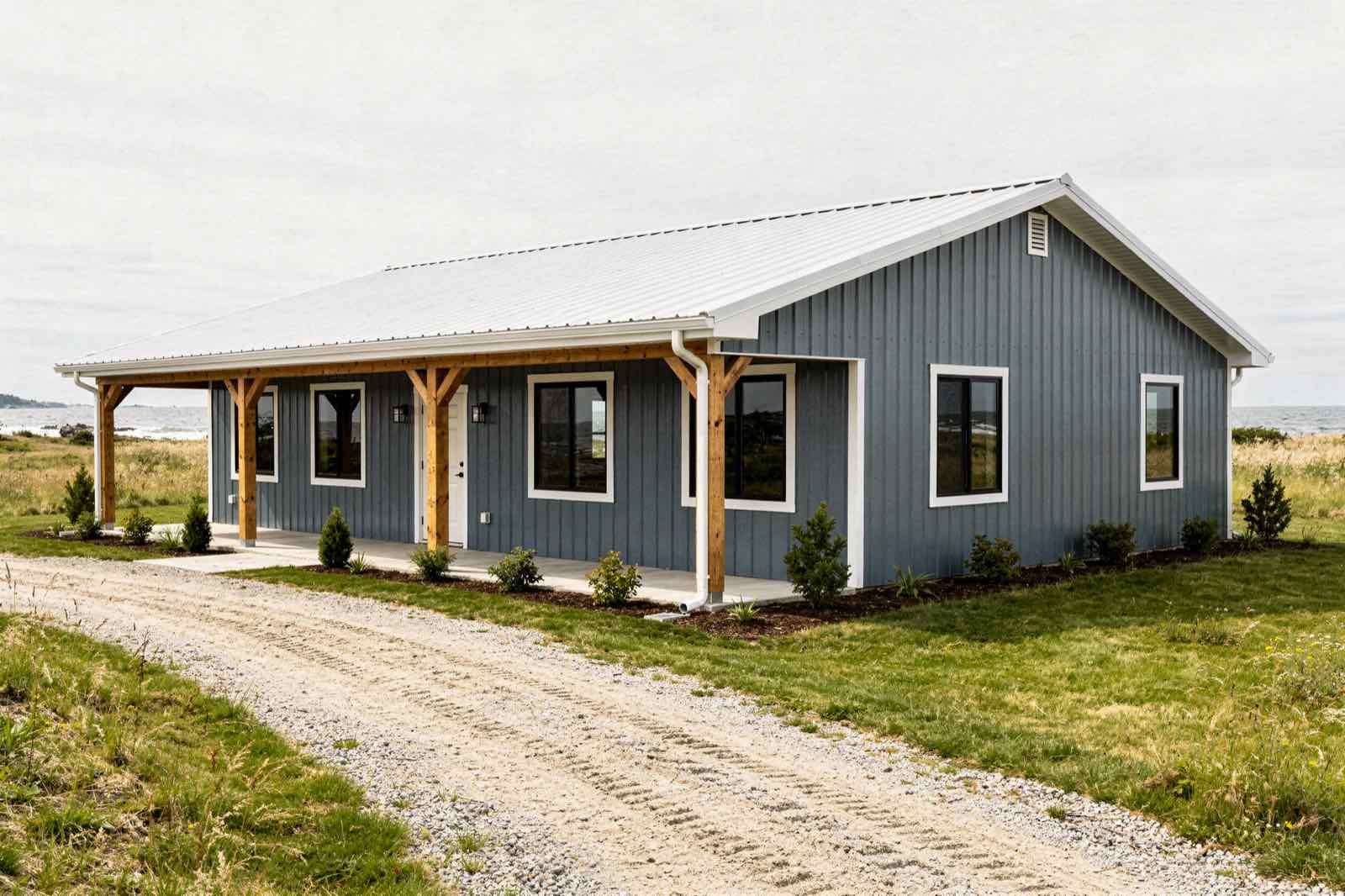

Orchard Flex
IF-10742 × 58 ft · Family Living
- 2,436
- Sq. ft.
- 2
- Beds
- 2
- Baths
- —
- Shop

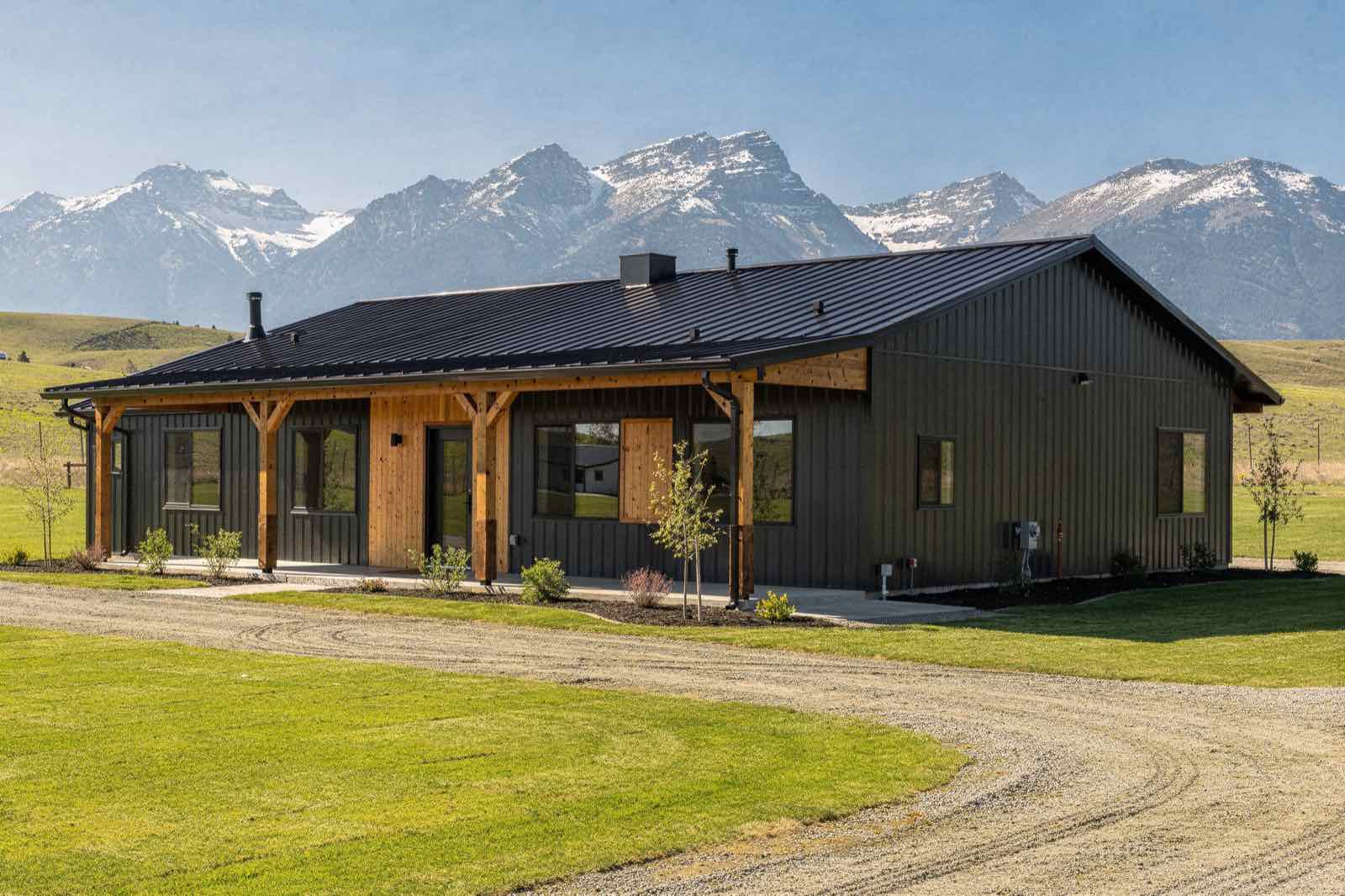

Longhouse
IF-10828 × 72 ft · Compact Living
- 2,016
- Sq. ft.
- 2
- Beds
- 2
- Baths
- —
- Shop

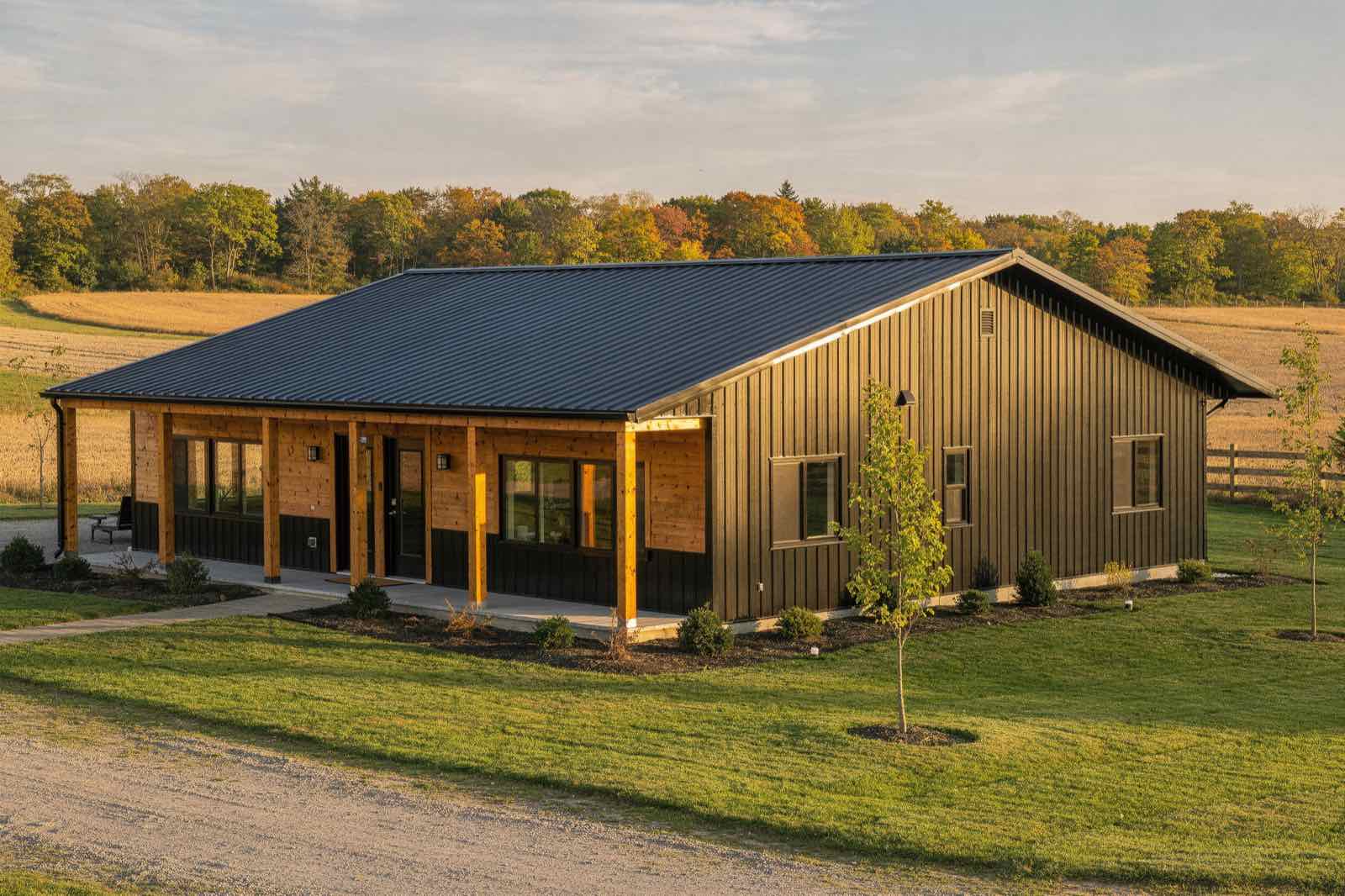

Homestead
IF-10960 × 60 ft · Rural & Specialty
- 3,600
- Sq. ft.
- 4
- Beds
- 2
- Baths
- —
- Shop

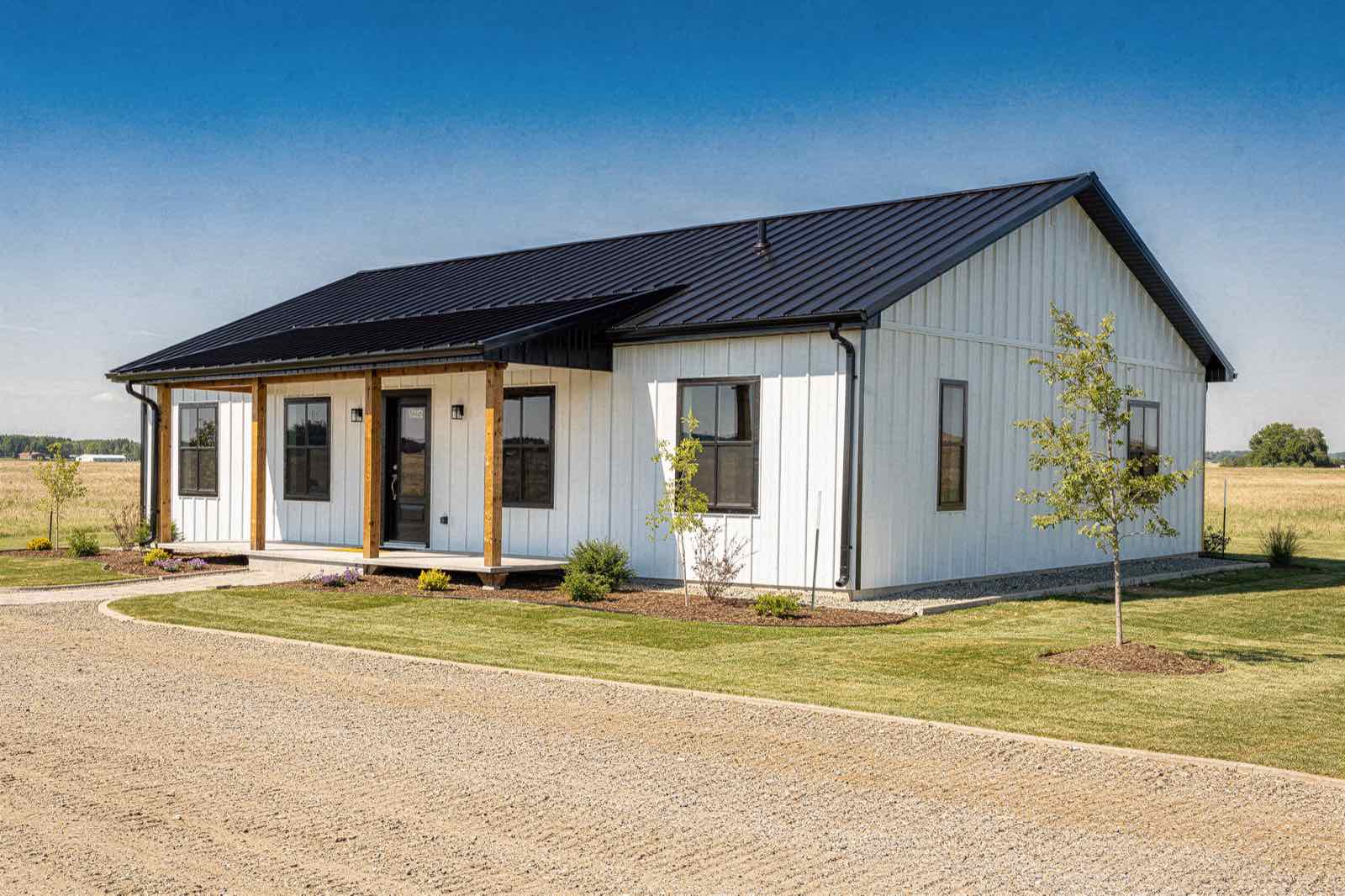

Lakeview
IF-11048 × 56 ft · Rural & Specialty
- 2,688
- Sq. ft.
- 3
- Beds
- 2
- Baths
- —
- Shop

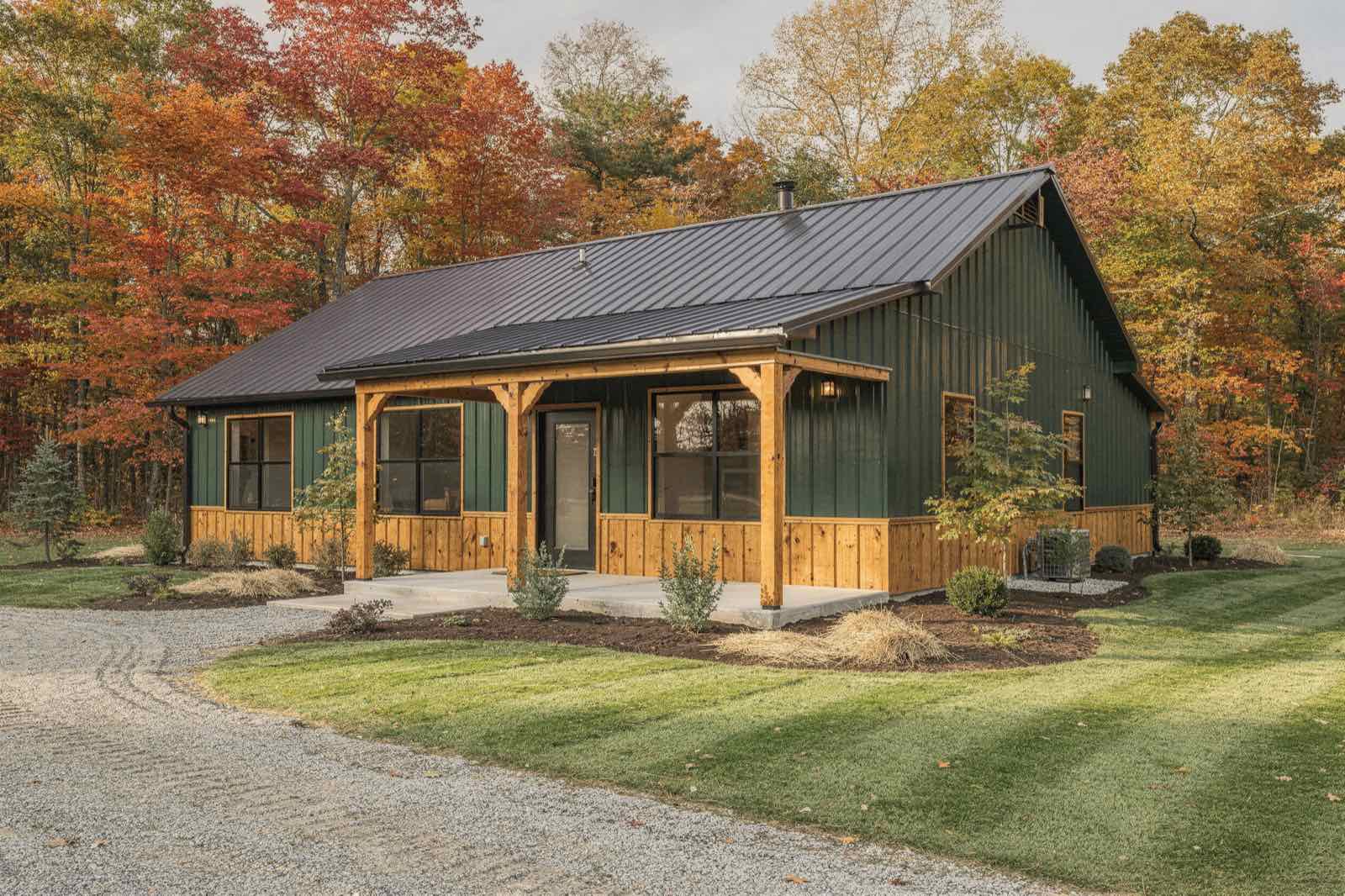

Birch Studio
IF-11124 × 36 ft · Compact Living
- 864
- Sq. ft.
- 1
- Beds
- 1
- Baths
- —
- Shop

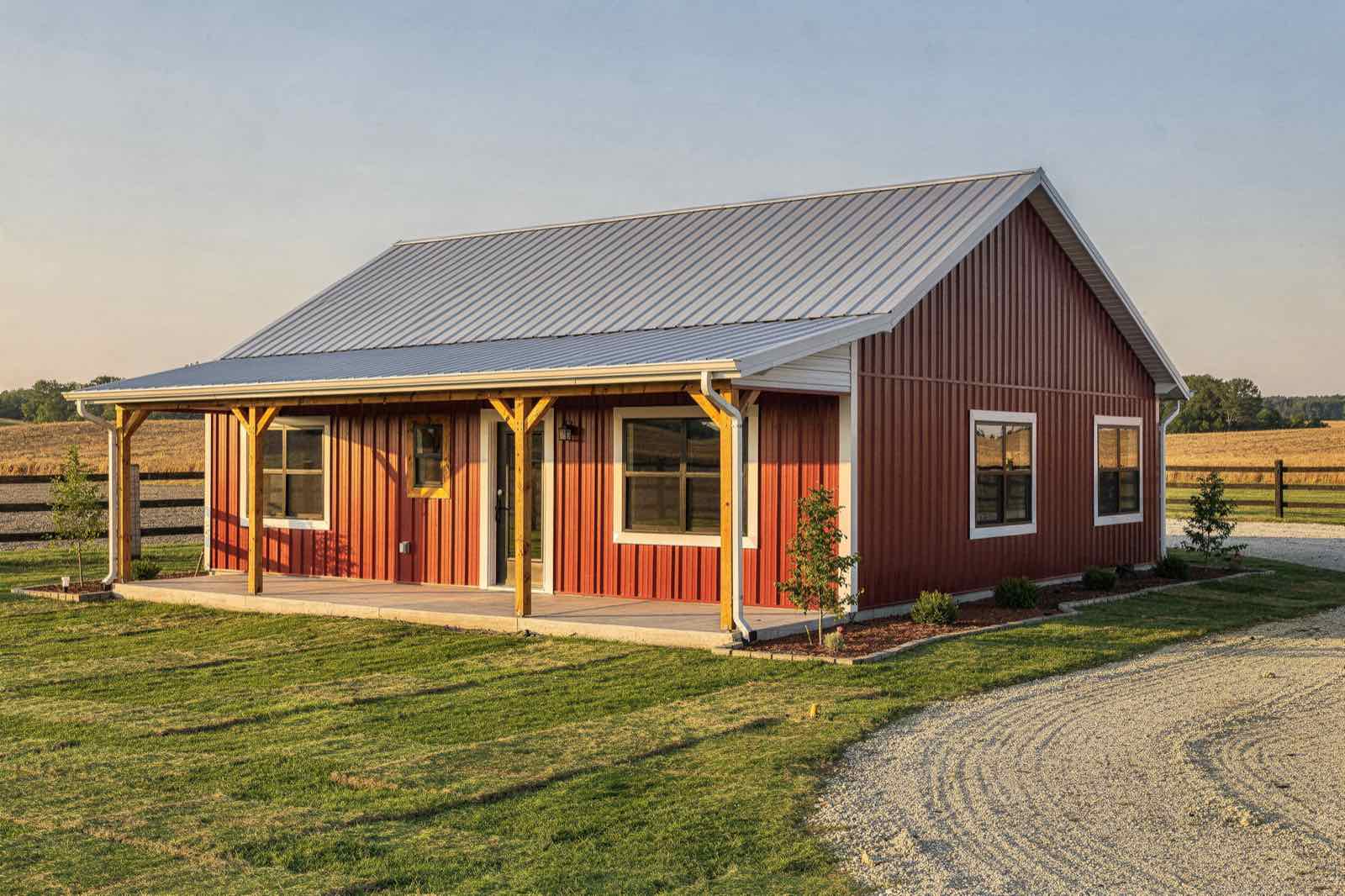

Prairie Cabin
IF-11230 × 40 ft · Compact Living
- 1,200
- Sq. ft.
- 2
- Beds
- 1
- Baths
- —
- Shop

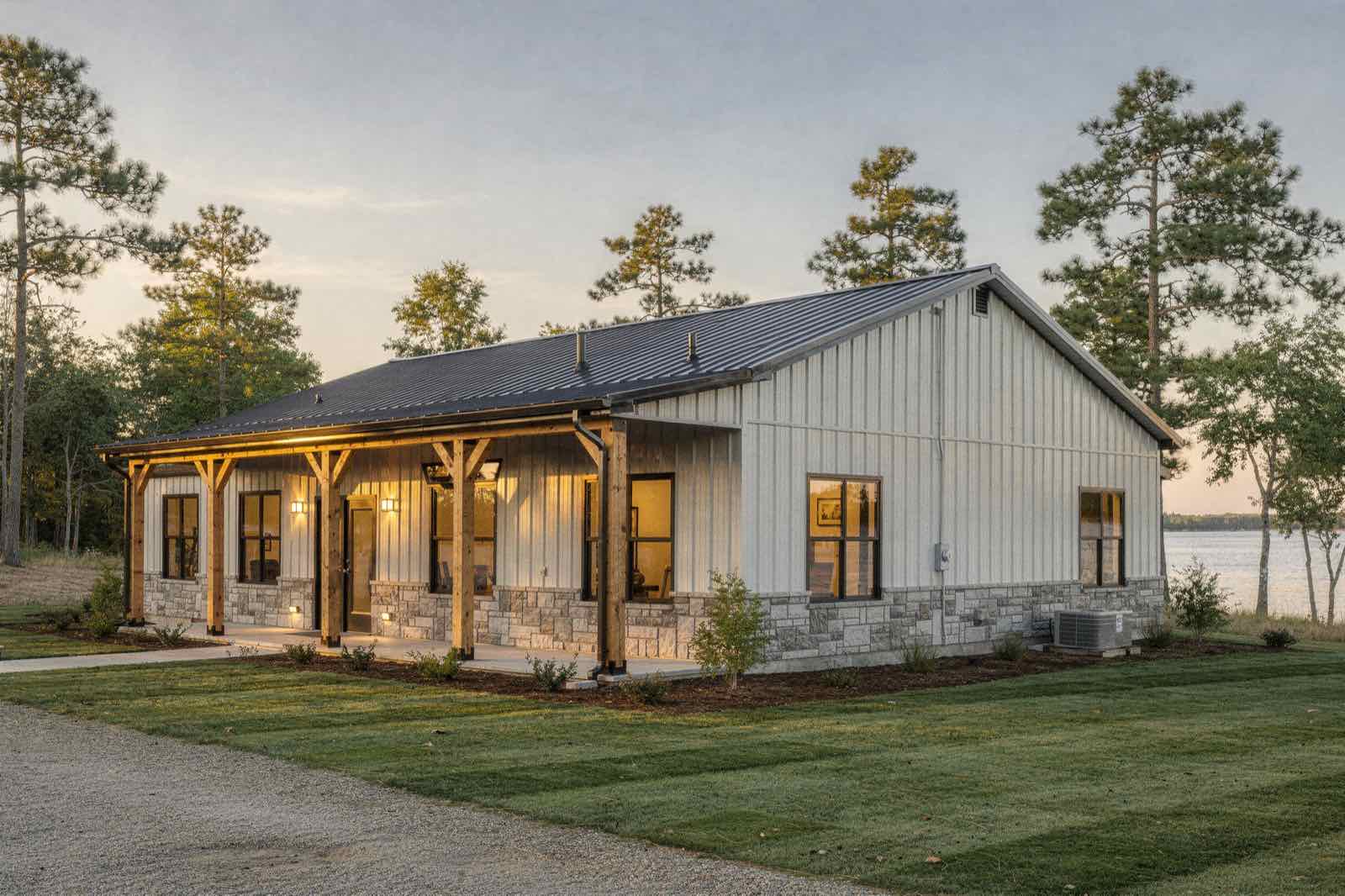

Sparrow
IF-11328 × 48 ft · Compact Living
- 1,344
- Sq. ft.
- 2
- Beds
- 2
- Baths
- —
- Shop

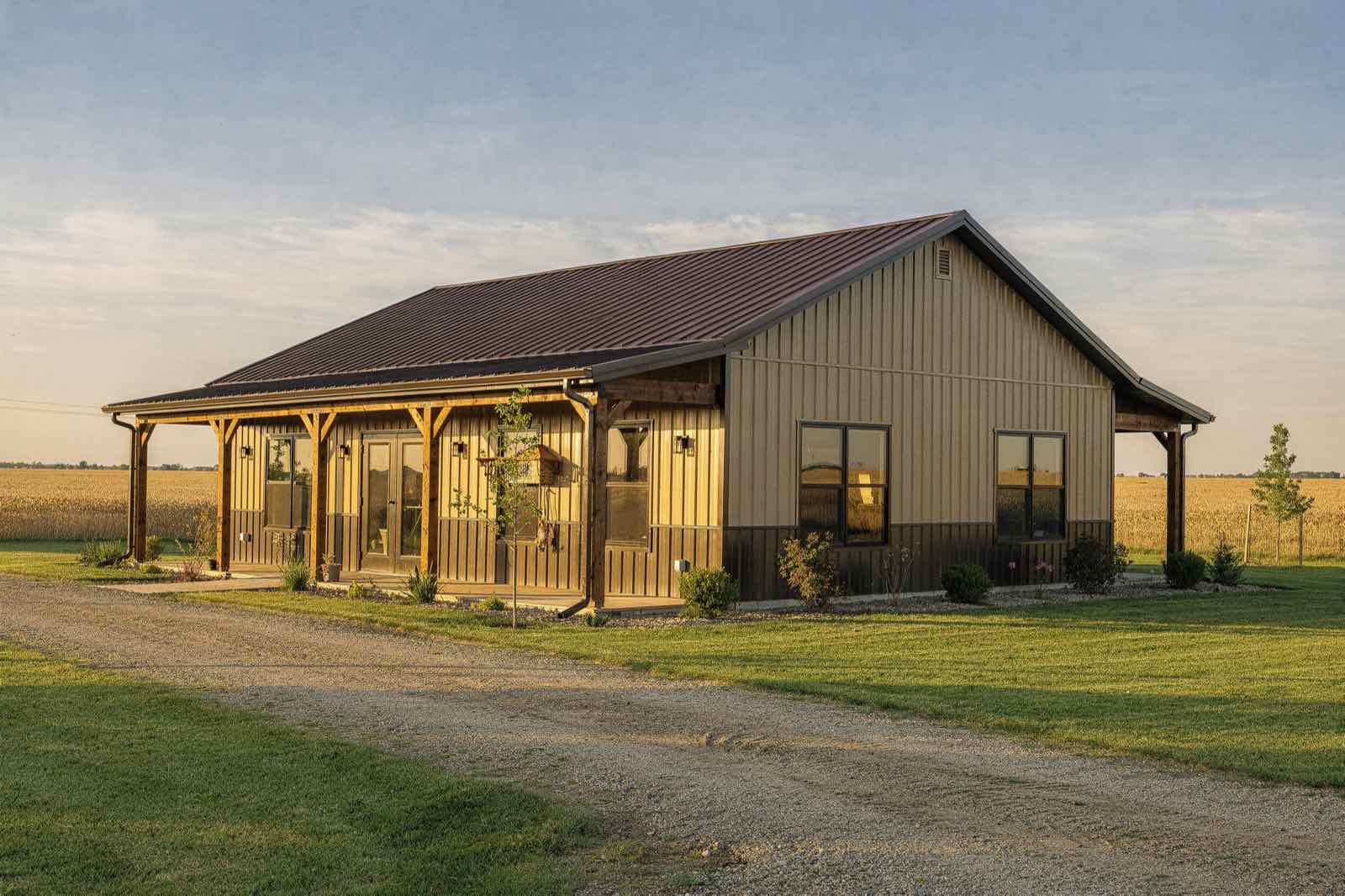

Hillside Two
IF-11436 × 40 ft · Compact Living
- 1,440
- Sq. ft.
- 2
- Beds
- 2
- Baths
- —
- Shop

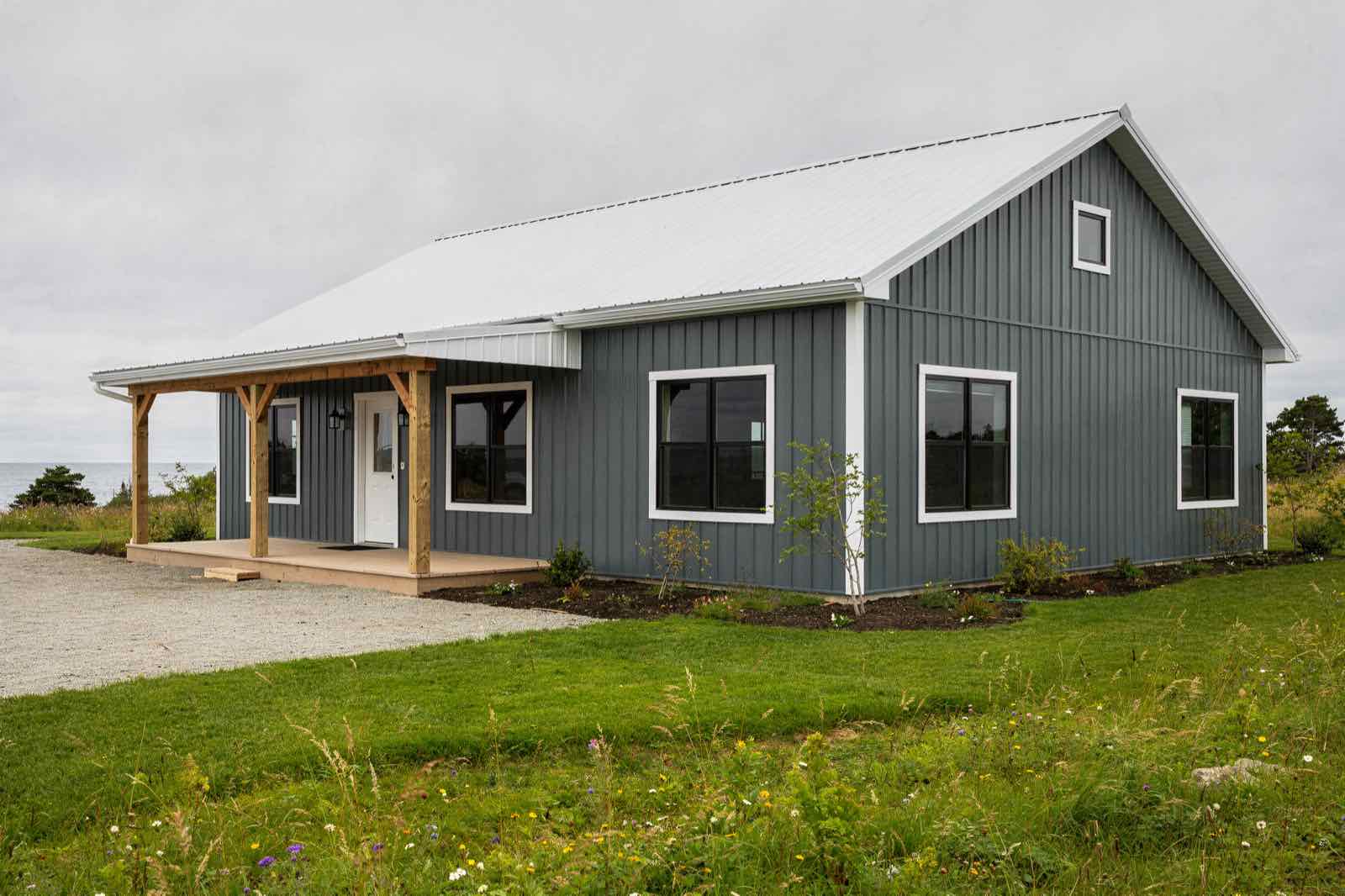

Aspen Family
IF-11540 × 64 ft · Family Living
- 2,560
- Sq. ft.
- 3
- Beds
- 2
- Baths
- —
- Shop

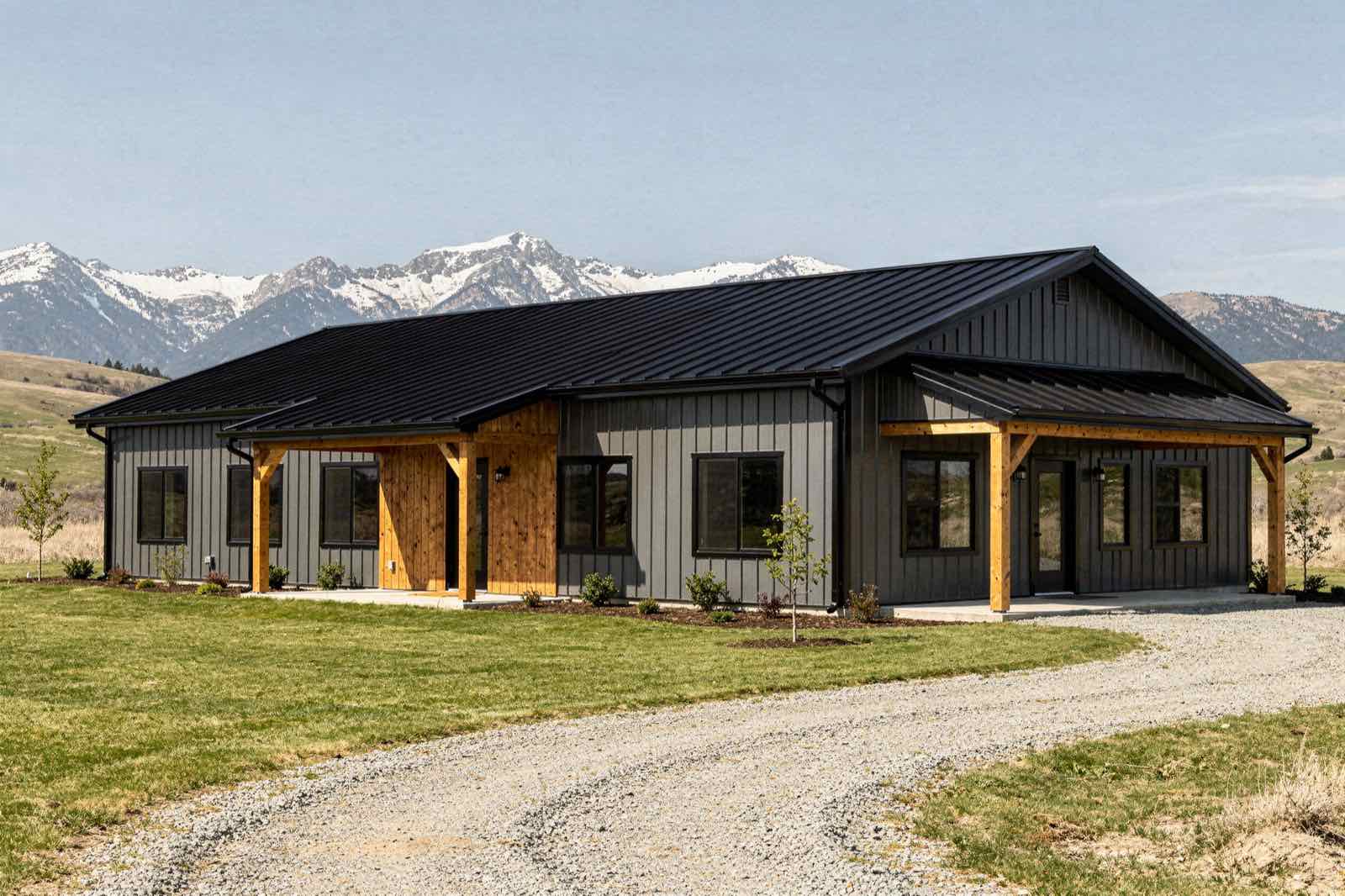

Timberline
IF-11648 × 64 ft · Family Living
- 3,072
- Sq. ft.
- 4
- Beds
- 2
- Baths
- —
- Shop

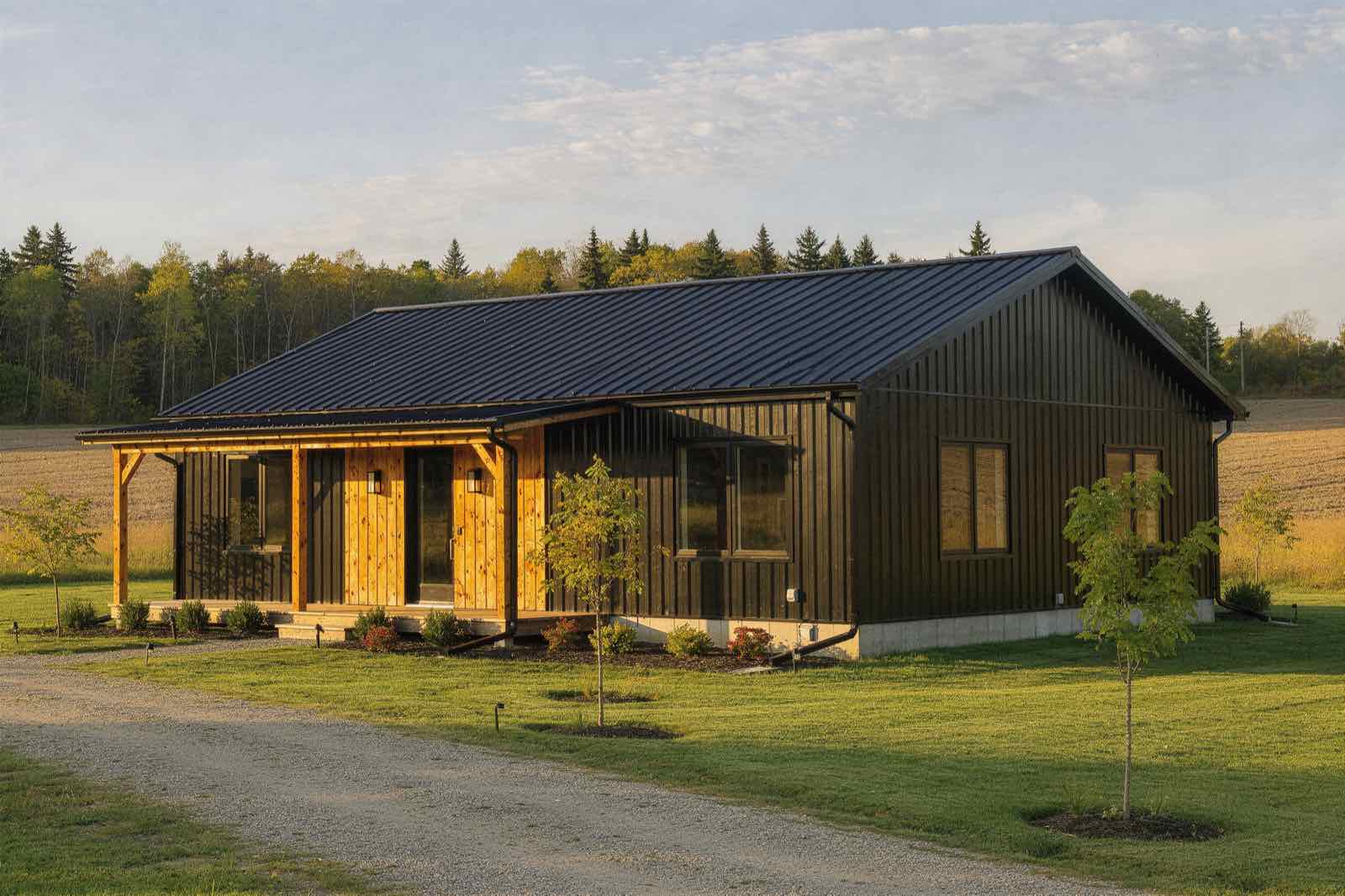

Harvest Split
IF-11744 × 60 ft · Family Living
- 2,640
- Sq. ft.
- 3
- Beds
- 2
- Baths
- —
- Shop

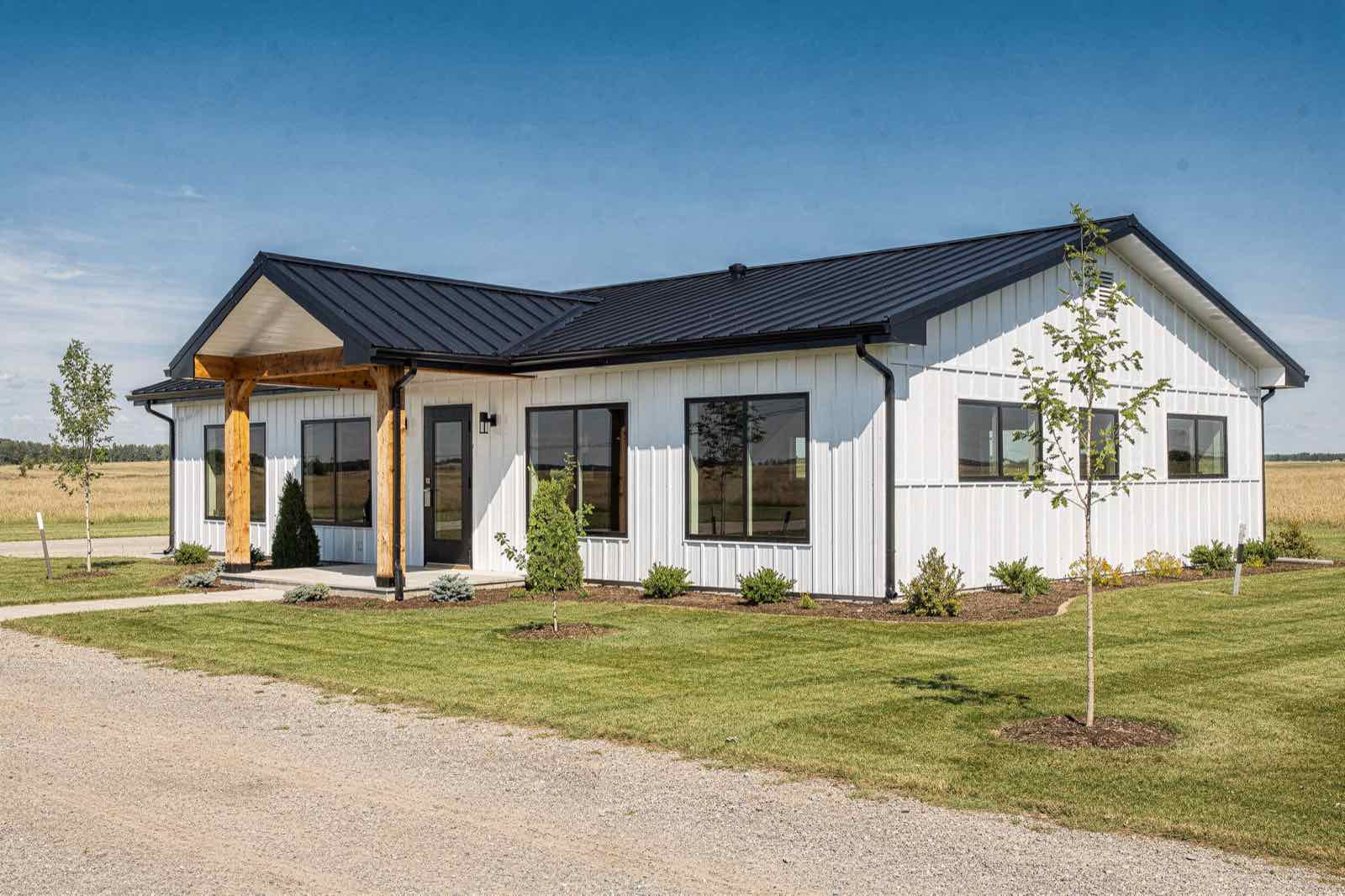

Meadow Four
IF-11848 × 68 ft · Family Living
- 3,264
- Sq. ft.
- 4
- Beds
- 3
- Baths
- —
- Shop

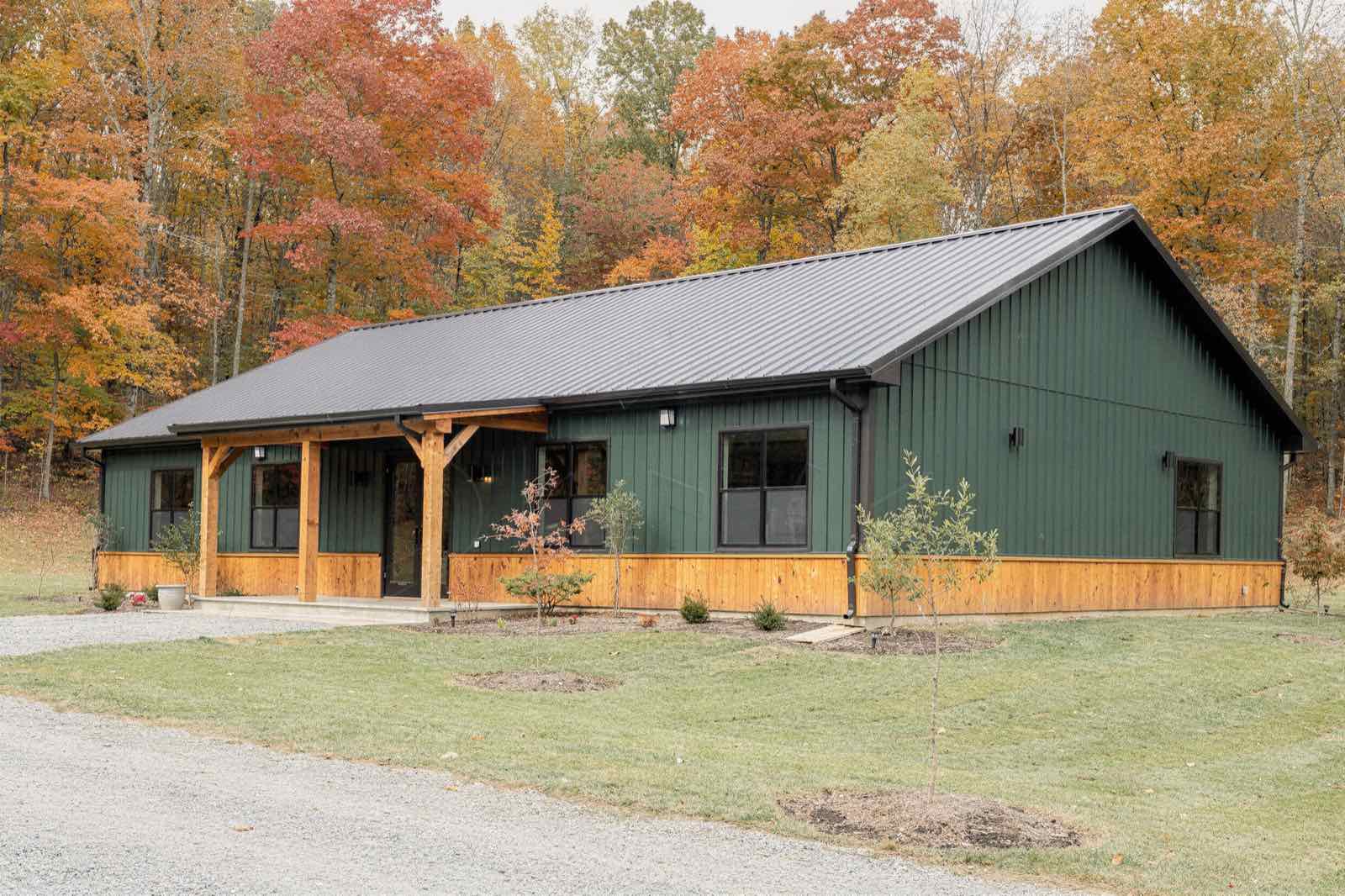

Cornerstone
IF-11940 × 56 ft · Family Living
- 2,240
- Sq. ft.
- 3
- Beds
- 2
- Baths
- —
- Shop

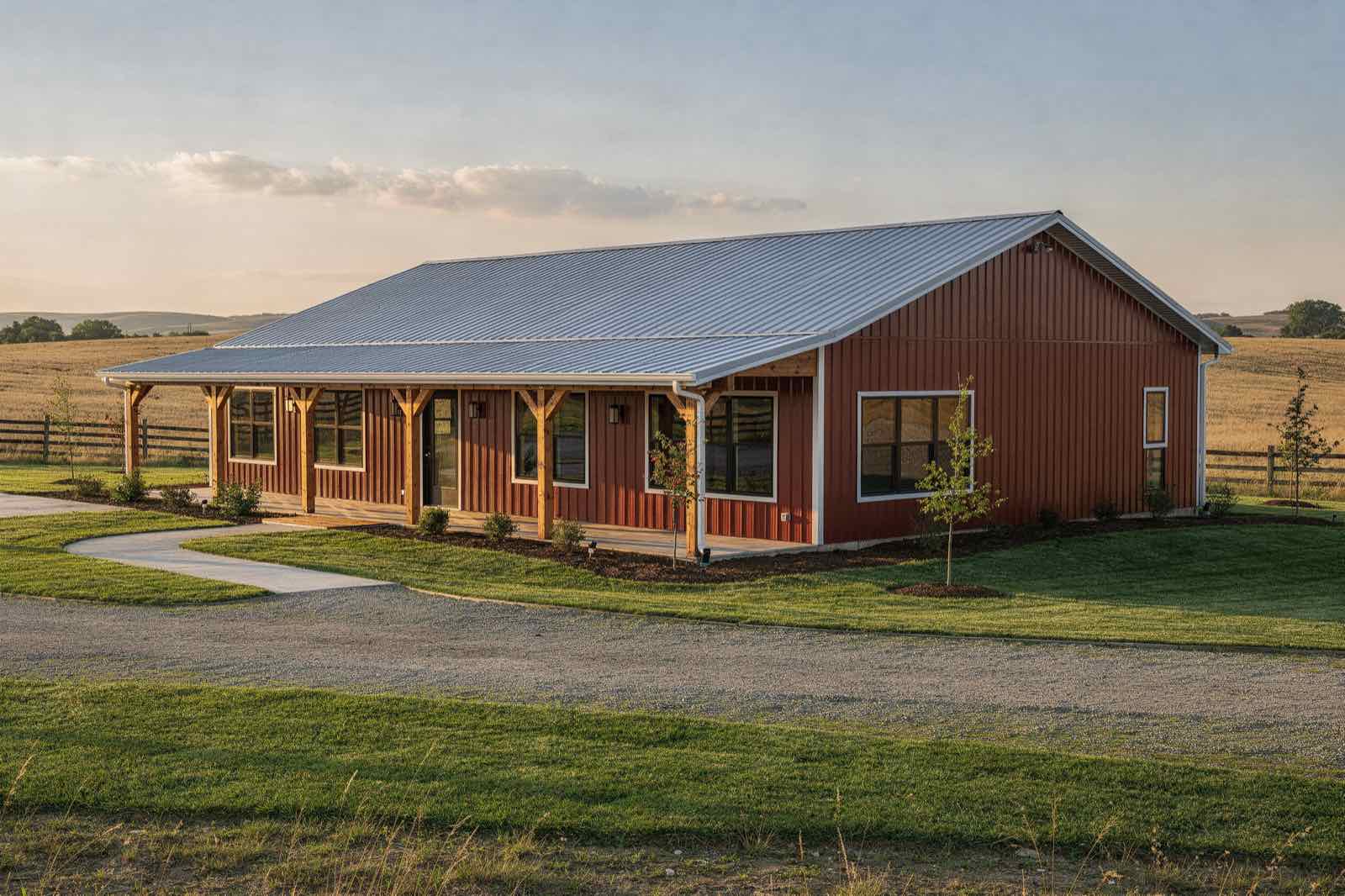

Fieldstone
IF-12044 × 72 ft · Family Living
- 3,168
- Sq. ft.
- 4
- Beds
- 2
- Baths
- —
- Shop

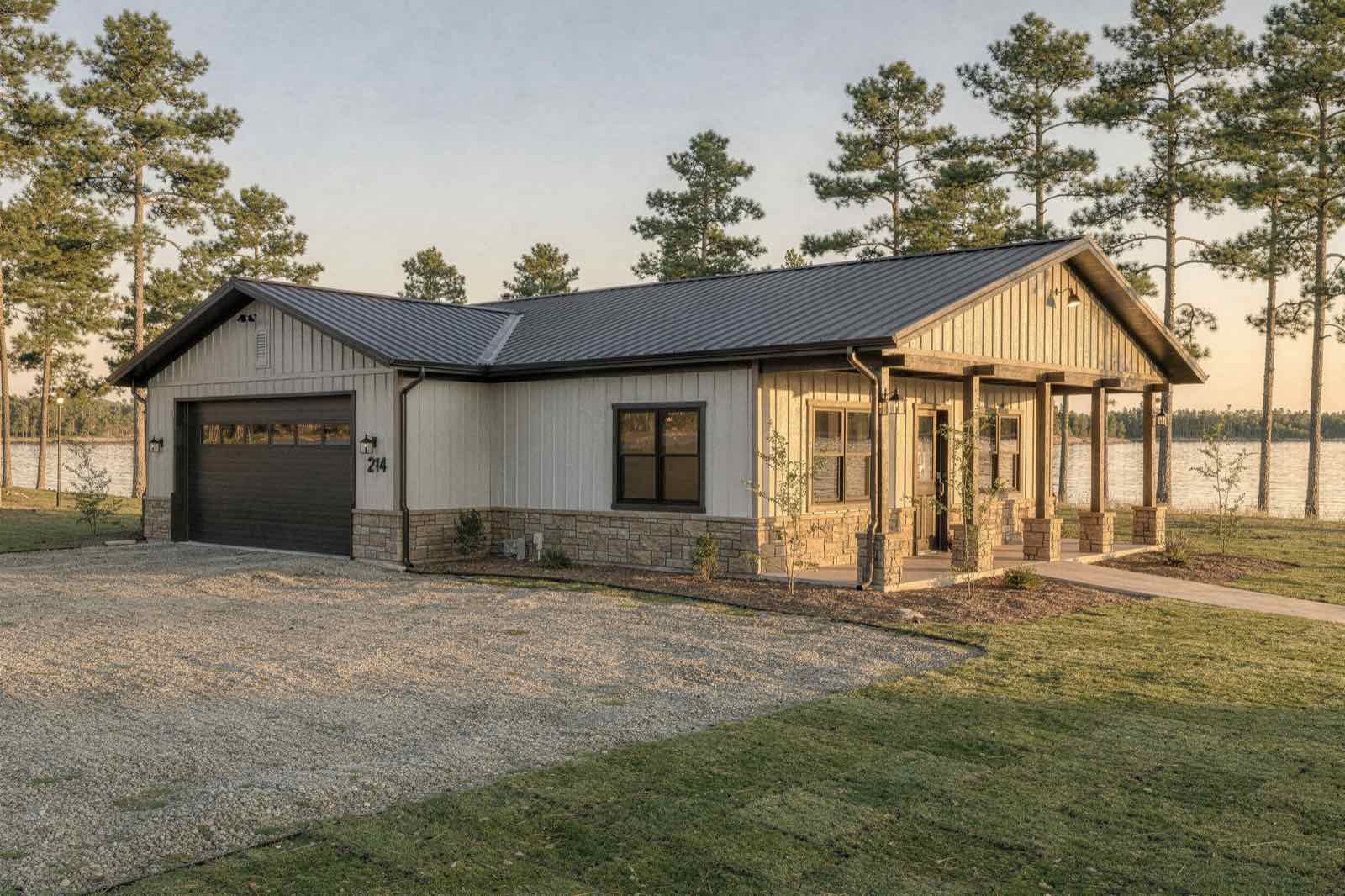

Anvil 60
IF-12160 × 40 ft · Shop + Home
- 1,440
- Sq. ft.
- 2
- Beds
- 1
- Baths
- 960
- Shop
Workbench
IF-12264 × 44 ft · Shop + Home
- 1,760
- Sq. ft.
- 2
- Beds
- 2
- Baths
- 1,056
- Shop

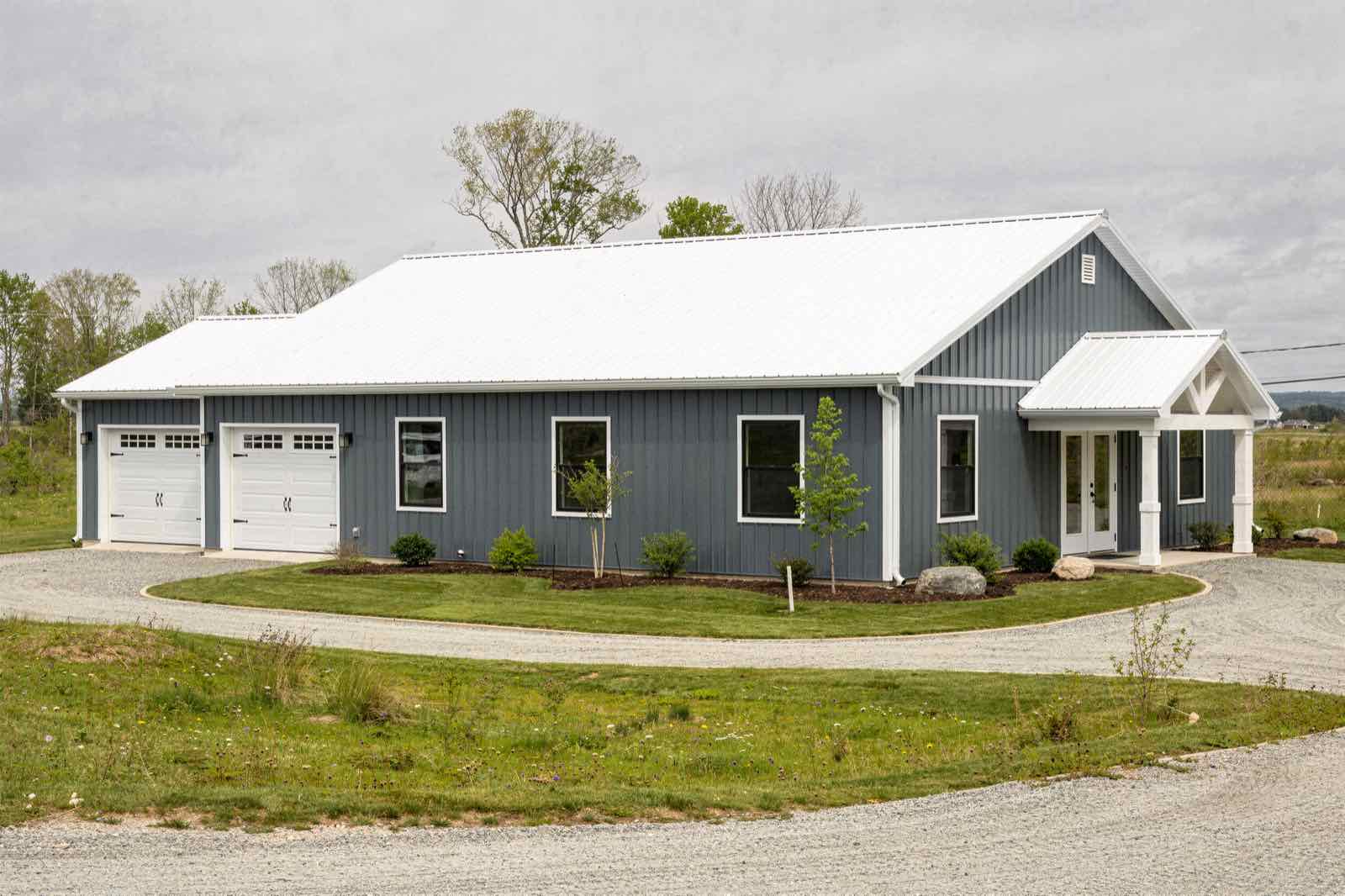

Gearhouse
IF-12396 × 48 ft · Shop + Home
- 2,688
- Sq. ft.
- 3
- Beds
- 2
- Baths
- 1,920
- Shop

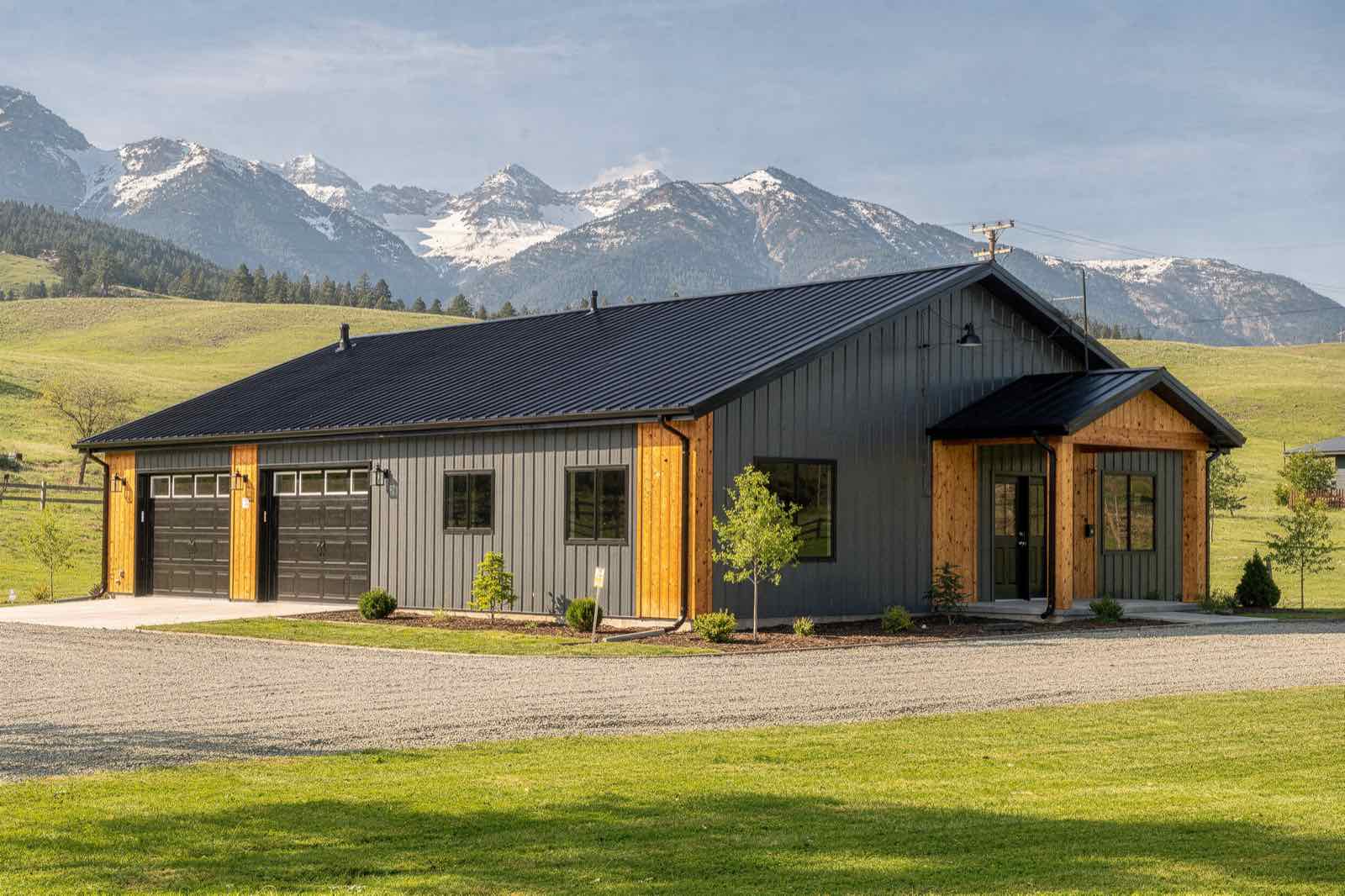

Bunkhouse
IF-12472 × 48 ft · Shop + Home
- 1,920
- Sq. ft.
- 2
- Beds
- 2
- Baths
- 1,536
- Shop

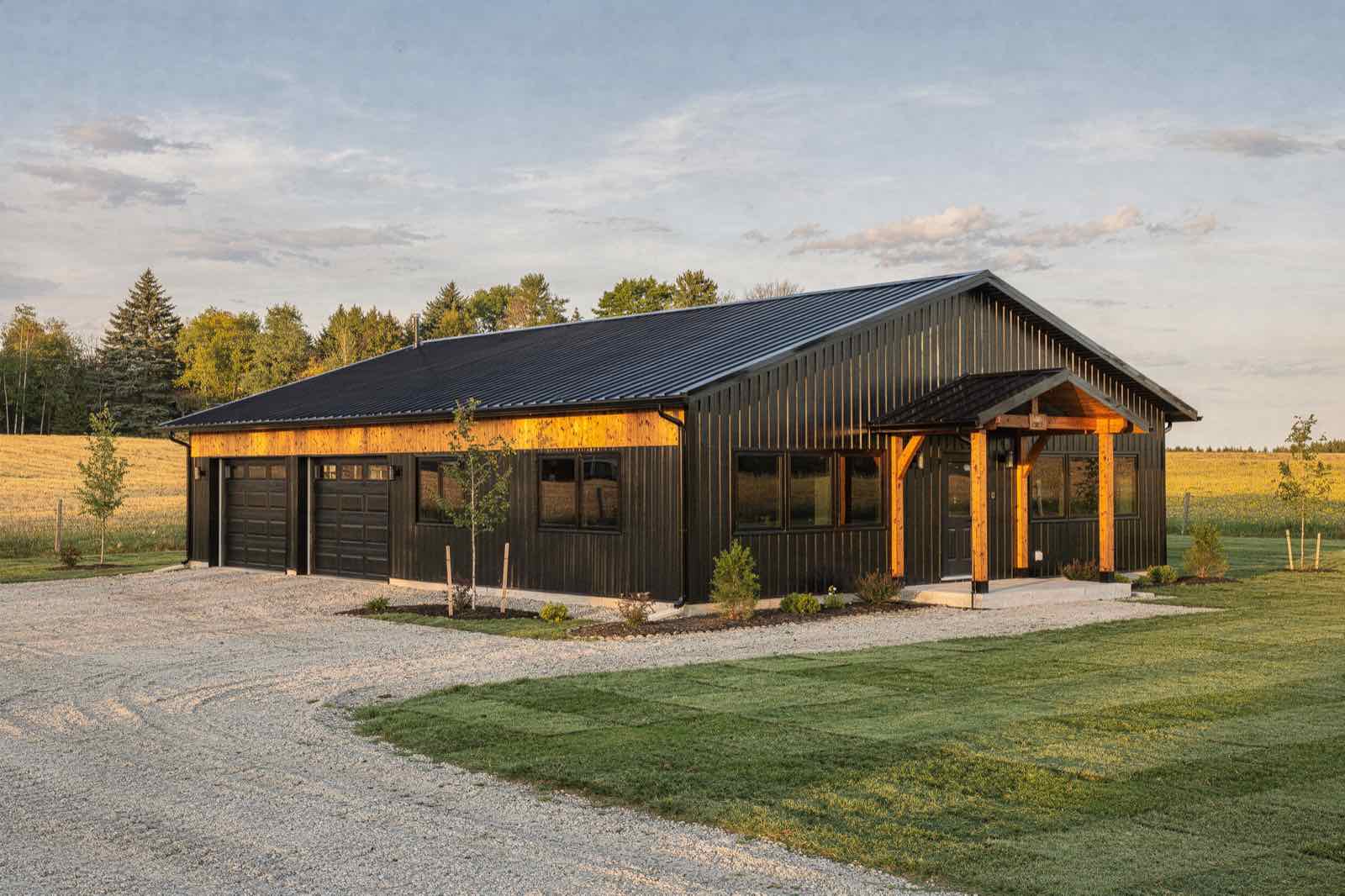

Machine Shed Home
IF-125100 × 50 ft · Shop + Home
- 2,500
- Sq. ft.
- 3
- Beds
- 2
- Baths
- 2,500
- Shop

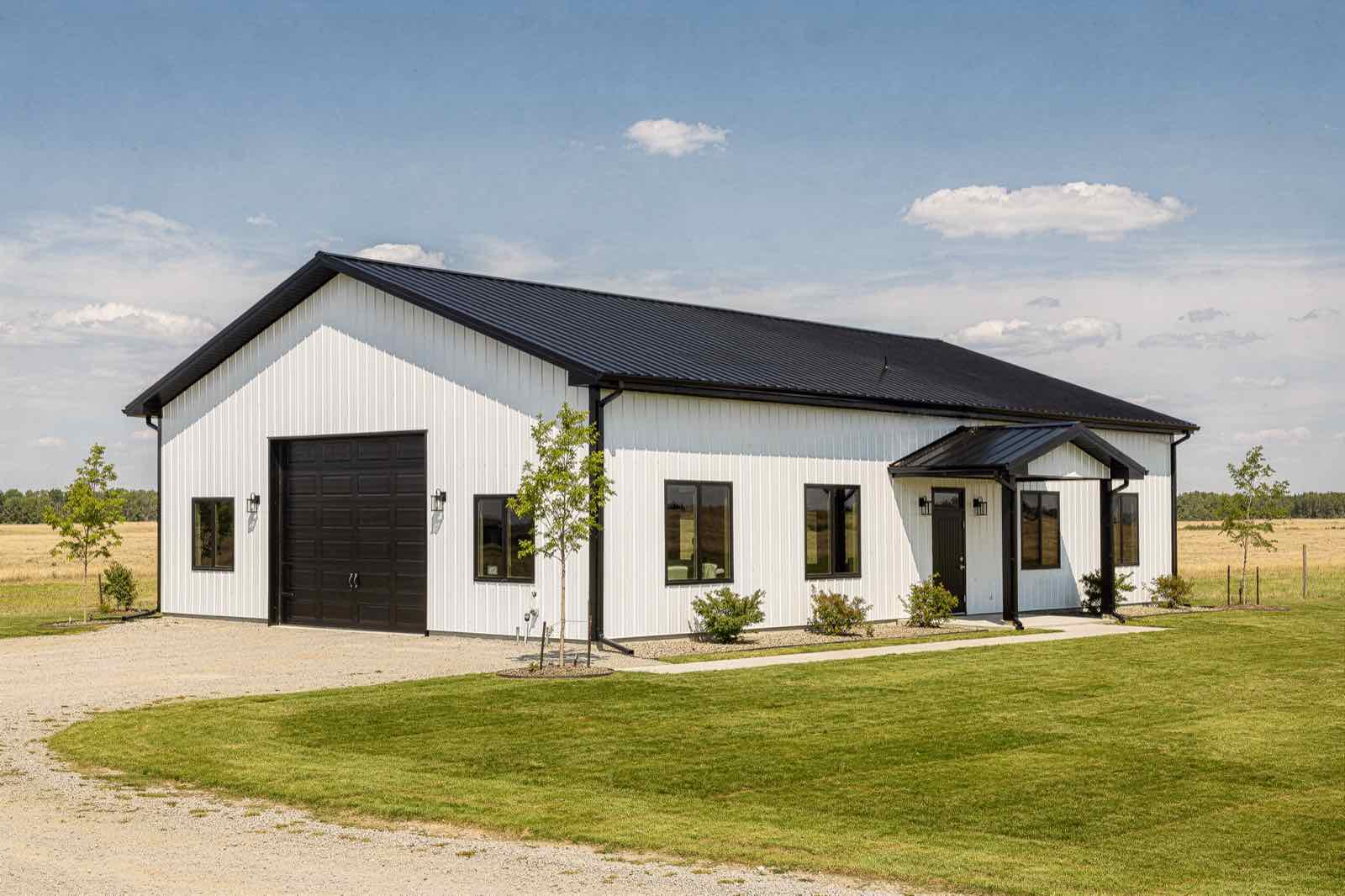

Tack & Home
IF-12684 × 40 ft · Shop + Home
- 1,920
- Sq. ft.
- 3
- Beds
- 2
- Baths
- 1,440
- Shop

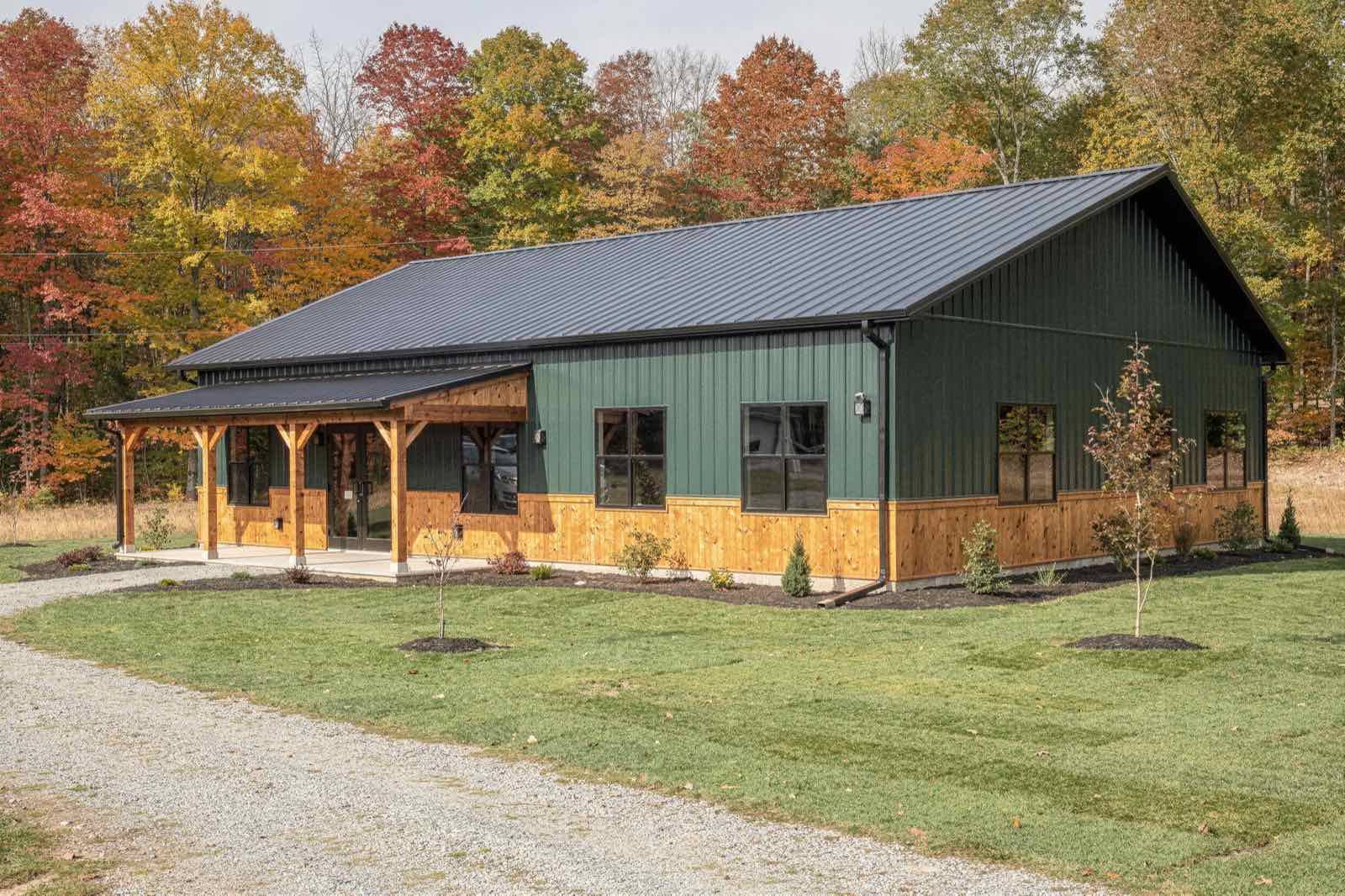

Ranchland
IF-12756 × 80 ft · Rural & Specialty
- 4,480
- Sq. ft.
- 4
- Beds
- 3
- Baths
- —
- Shop

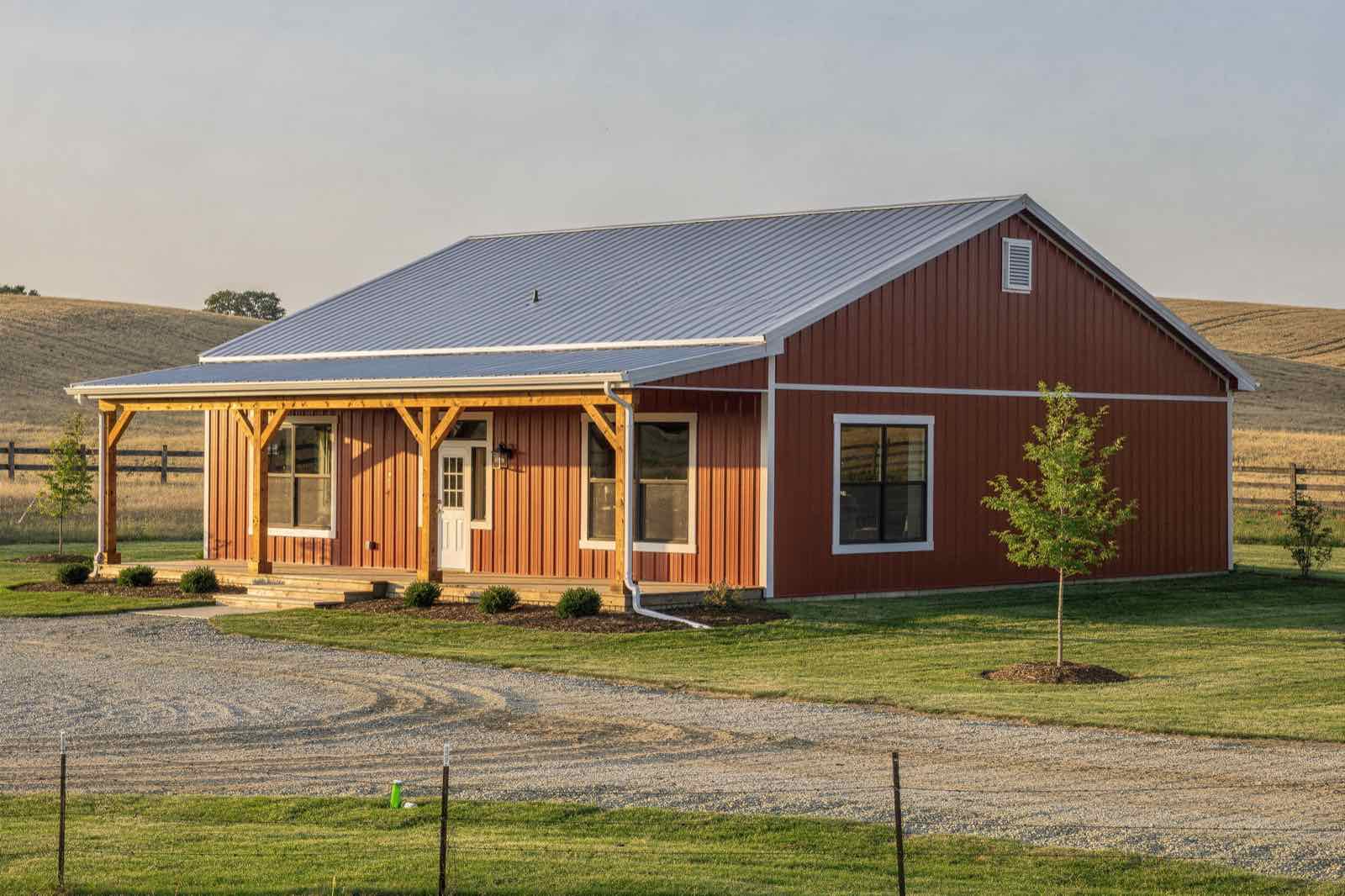

Hunter's Retreat
IF-12832 × 56 ft · Rural & Specialty
- 1,792
- Sq. ft.
- 3
- Beds
- 2
- Baths
- —
- Shop
Multigen
IF-12960 × 72 ft · Rural & Specialty
- 4,320
- Sq. ft.
- 5
- Beds
- 3
- Baths
- —
- Shop

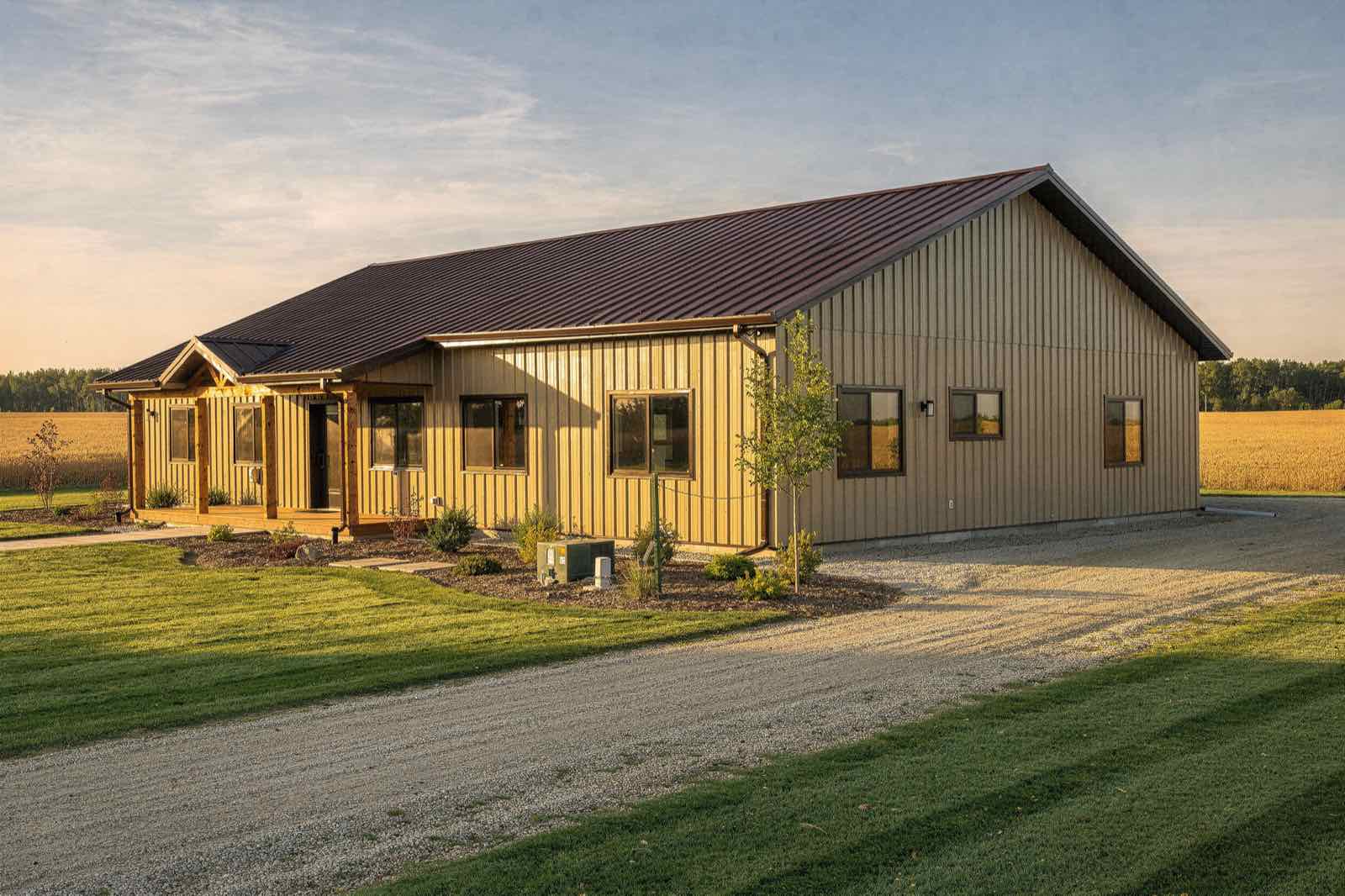

Long Lake
IF-13032 × 80 ft · Rural & Specialty
- 2,560
- Sq. ft.
- 3
- Beds
- 2
- Baths
- —
- Shop
Photos are illustrative renderings of each concept, not completed builds. Colours, finishes, porches and landscaping are examples.
What every concept kit includes
- Itemized material takeoff for your customized size, as a printable list and CSV for suppliers
- 7-page plan PDF: overview, dimensioned concept layout, room and area schedule
- Design brief and systems-first review prompts
- Customization worksheet and local-professional handoff guide
- Editable workbook: budget, bid comparison, decision register, milestones
- 14-page Owner-Builder Field Guide
- Exterior character study for style inspiration
Concept plans, not construction drawings. IronField concepts provide preliminary, illustrative room zoning, not finished interior dimensions or approved construction design. They do not include engineering, sealed drawings, elevations, foundation design, construction details, mechanical, electrical, or plumbing design, zoning determinations, or permit approval. Every project needs site-specific verification, local permits, and professional design and engineering where required.
Compare footprints
Gross bounding-footprint planning areas. Finished room sizes are smaller once walls, structure, and services are accounted for.
| Plan | Footprint | Gross sq. ft. | Shop sq. ft. | Bed / Bath |
|---|---|---|---|---|
| IF-101 Cedar Compact | 32 × 44 ft | 1,408 | — | 2 / 1 |
| IF-102 Willow Family | 40 × 60 ft | 2,400 | — | 3 / 2 |
| IF-103 Ridgeview Ranch | 44 × 64 ft | 2,816 | — | 3 / 2 |
| IF-104 Legacy Four | 48 × 72 ft | 3,456 | — | 4 / 3 |
| IF-105 Forge Shop House | 72 × 40 ft | 2,880 | 1,120 | 2 / 2 |
| IF-106 Tradesman 80 | 80 × 44 ft | 3,520 | 1,408 | 2 / 2 |
| IF-107 Orchard Flex | 42 × 58 ft | 2,436 | — | 2 / 2 |
| IF-108 Longhouse | 28 × 72 ft | 2,016 | — | 2 / 2 |
| IF-109 Homestead | 60 × 60 ft | 3,600 | — | 4 / 2 |
| IF-110 Lakeview | 48 × 56 ft | 2,688 | — | 3 / 2 |
| IF-111 Birch Studio | 24 × 36 ft | 864 | — | 1 / 1 |
| IF-112 Prairie Cabin | 30 × 40 ft | 1,200 | — | 2 / 1 |
| IF-113 Sparrow | 28 × 48 ft | 1,344 | — | 2 / 2 |
| IF-114 Hillside Two | 36 × 40 ft | 1,440 | — | 2 / 2 |
| IF-115 Aspen Family | 40 × 64 ft | 2,560 | — | 3 / 2 |
| IF-116 Timberline | 48 × 64 ft | 3,072 | — | 4 / 2 |
| IF-117 Harvest Split | 44 × 60 ft | 2,640 | — | 3 / 2 |
| IF-118 Meadow Four | 48 × 68 ft | 3,264 | — | 4 / 3 |
| IF-119 Cornerstone | 40 × 56 ft | 2,240 | — | 3 / 2 |
| IF-120 Fieldstone | 44 × 72 ft | 3,168 | — | 4 / 2 |
| IF-121 Anvil 60 | 60 × 40 ft | 2,400 | 960 | 2 / 1 |
| IF-122 Workbench | 64 × 44 ft | 2,816 | 1,056 | 2 / 2 |
| IF-123 Gearhouse | 96 × 48 ft | 4,608 | 1,920 | 3 / 2 |
| IF-124 Bunkhouse | 72 × 48 ft | 3,456 | 1,536 | 2 / 2 |
| IF-125 Machine Shed Home | 100 × 50 ft | 5,000 | 2,500 | 3 / 2 |
| IF-126 Tack & Home | 84 × 40 ft | 3,360 | 1,440 | 3 / 2 |
| IF-127 Ranchland | 56 × 80 ft | 4,480 | — | 4 / 3 |
| IF-128 Hunter's Retreat | 32 × 56 ft | 1,792 | — | 3 / 2 |
| IF-129 Multigen | 60 × 72 ft | 4,320 | — | 5 / 3 |
| IF-130 Long Lake | 32 × 80 ft | 2,560 | — | 3 / 2 |
Launching soon
The complete 30-plan collection
All thirty concept PDFs, the editable workbook, the field guide, and every style study. Launch price $249 CAD, one-time. Individual kits $59 CAD. Reserve now and we'll email you when checkout opens.
Questions
Can I submit the PDF for a permit?
No. It is a preliminary planning aid. Ask your local authority and a qualified design professional what a complete permit package requires.
Are the square-foot figures exact finished areas?
No. They are gross bounding-footprint planning figures. Finished room sizes are smaller once walls, structure, and services are accounted for.
Do I need a local engineer or designer?
It depends on your jurisdiction, structural system, foundation, use, and code. Ask your authority having jurisdiction. Even where a professional seal is not mandatory, technical requirements and inspections still apply.
Can IronField change the layout?
Concept customization can be quoted separately. Construction-ready professional documentation is outside the base purchase.
Are the exterior illustrations exact?
No. They are aesthetic character studies only. Their windows, doors, roof geometry, and colours are not a designed exterior elevation.
Can I share the files with my contractor or designer?
Yes, for your own planning on one building project under the buyer's licence. Not for resale, reposting, or sublicensing.
Prices are launch prices and may change. Exterior images are illustrative character studies, not elevations or exact renders of the layouts.
