Barndominium Floor Plans: Layout Guide & Planning Checklist
IronField doesn't sell pre-drawn floor plans — your kit supplier, a local draftsperson, or your builder does. What we do is help you make the layout decisions that determine whether a plan actually works before you pay someone to draw it.
Most barndominium living areas run 1,500–3,000 sq ft, plus 600–2,000+ sq ft of shop space for builds that include one. The layout choices below — bedroom placement, mechanical routing, shop separation — matter more than the square footage number.
A floor plan finalized without mechanical rough-in mapped first is the most common source of expensive mid-build change orders.
Common Barndominium Floor Plan Layouts

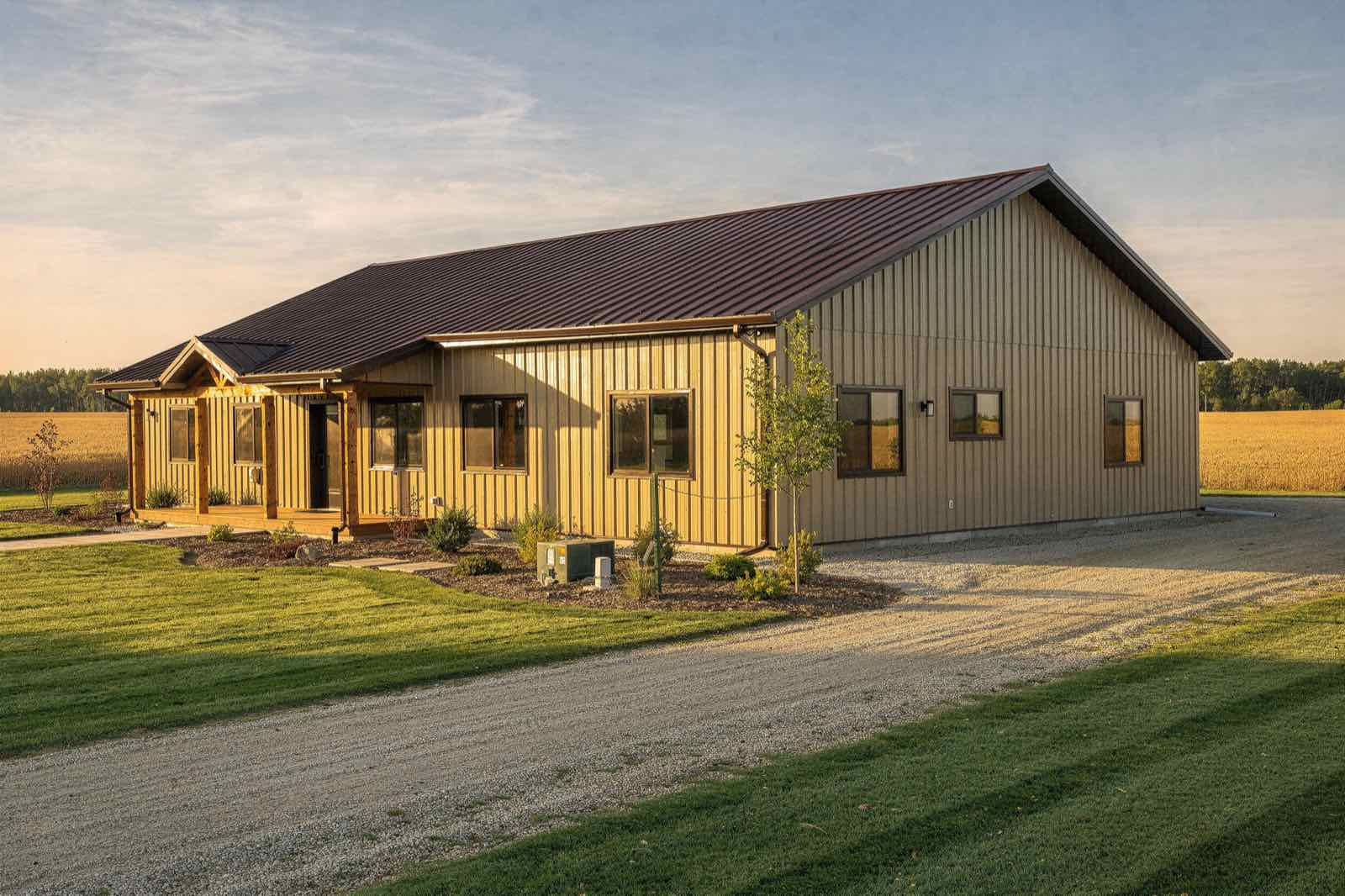

Open-Concept Single Story
Kitchen, living, and dining share one open volume — the most common barndominium layout, and the easiest to heat and cool efficiently with a single HVAC zone.
Split-Bedroom Layout
Primary suite on one side of the home, secondary bedrooms on the other. Genuinely reduces noise transfer between household members — and away from an attached shop, if you have one.
1.5-Story / Loft
A bonus room or loft over the garage or shop bay adds real square footage without expanding the foundation footprint — popular for a home office, guest space, or media room.

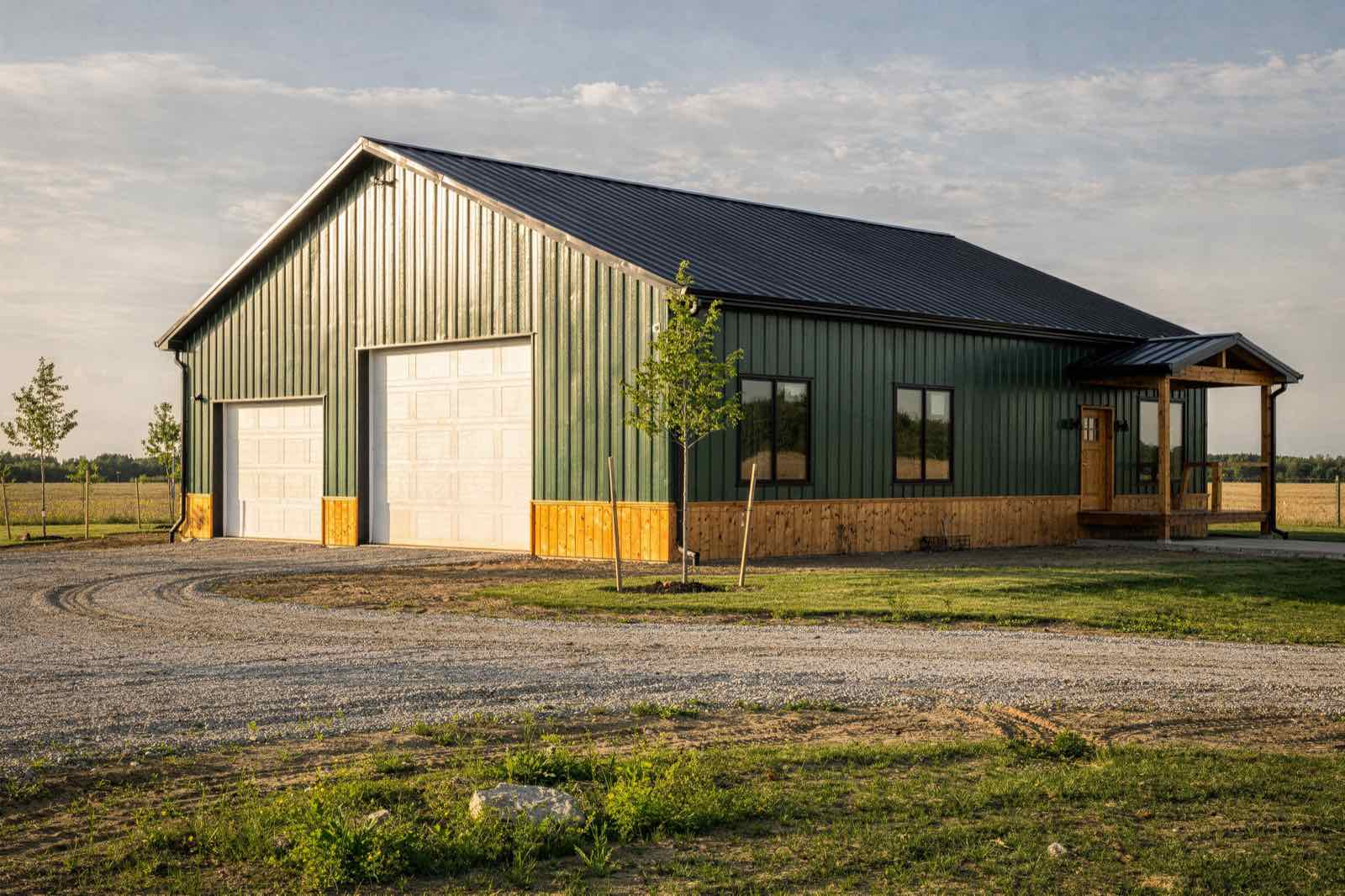

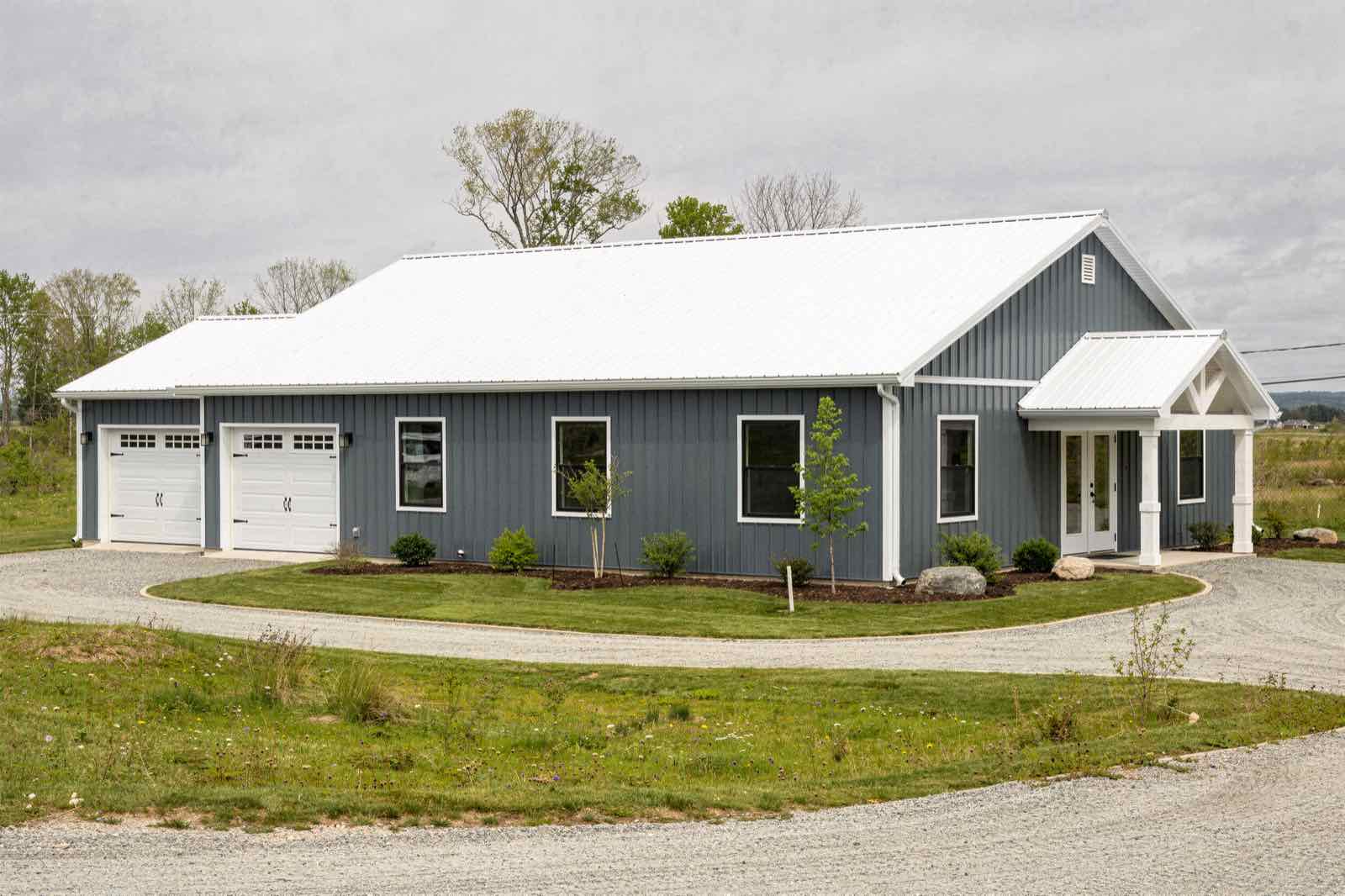

Shop-House Combo
Living quarters attached directly to a shop bay under one roof. Requires real fire separation, mechanical isolation, and CO/ventilation planning — see our dedicated shop-house guide below.

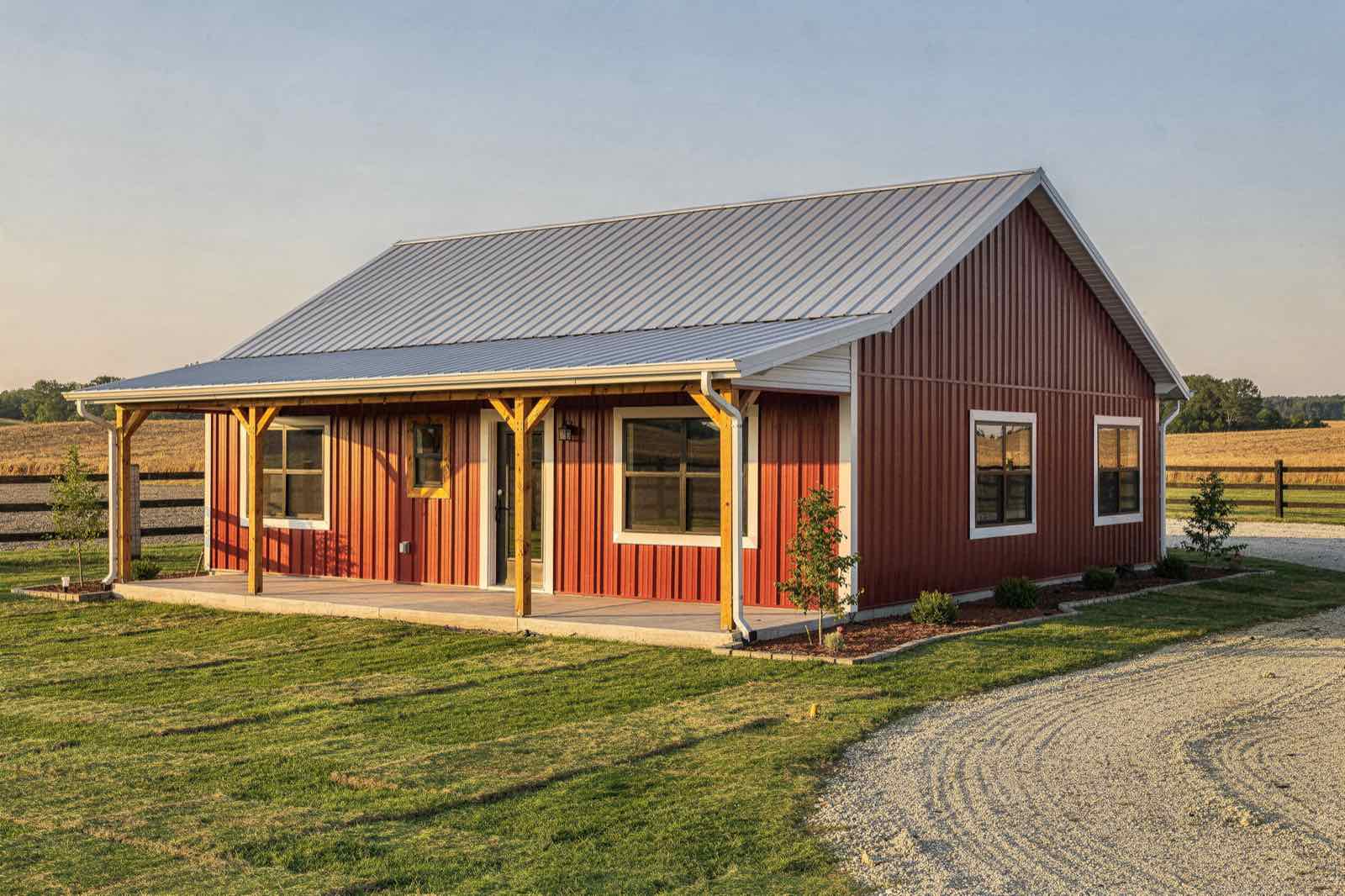

Small / Compact Barndominium
600–1,200 sq ft single-story layouts — a genuinely lower-cost entry point, popular as a starter home, guest house, or accessory dwelling. Shorter mechanical runs mean real plumbing and duct savings versus a larger footprint.
Two-Story
Less common than single-story or a loft in post-frame construction — upper-floor loads change post and truss engineering. Stack upstairs plumbing directly above main-floor wet walls to avoid a real, avoidable cost in offset routing.
Exterior Style Trends
These are exterior finish choices, not different construction methods — the post-frame structure and mechanical planning underneath is the same regardless of style.
Black Barndominium
Dark or black-painted steel cladding (often a matte Colorbond or dark Galvalume finish) paired with black window and door trim — a genuinely popular modern exterior look. Confirm your kit supplier's dark-colour panels are rated for your climate, since dark exteriors absorb more heat.

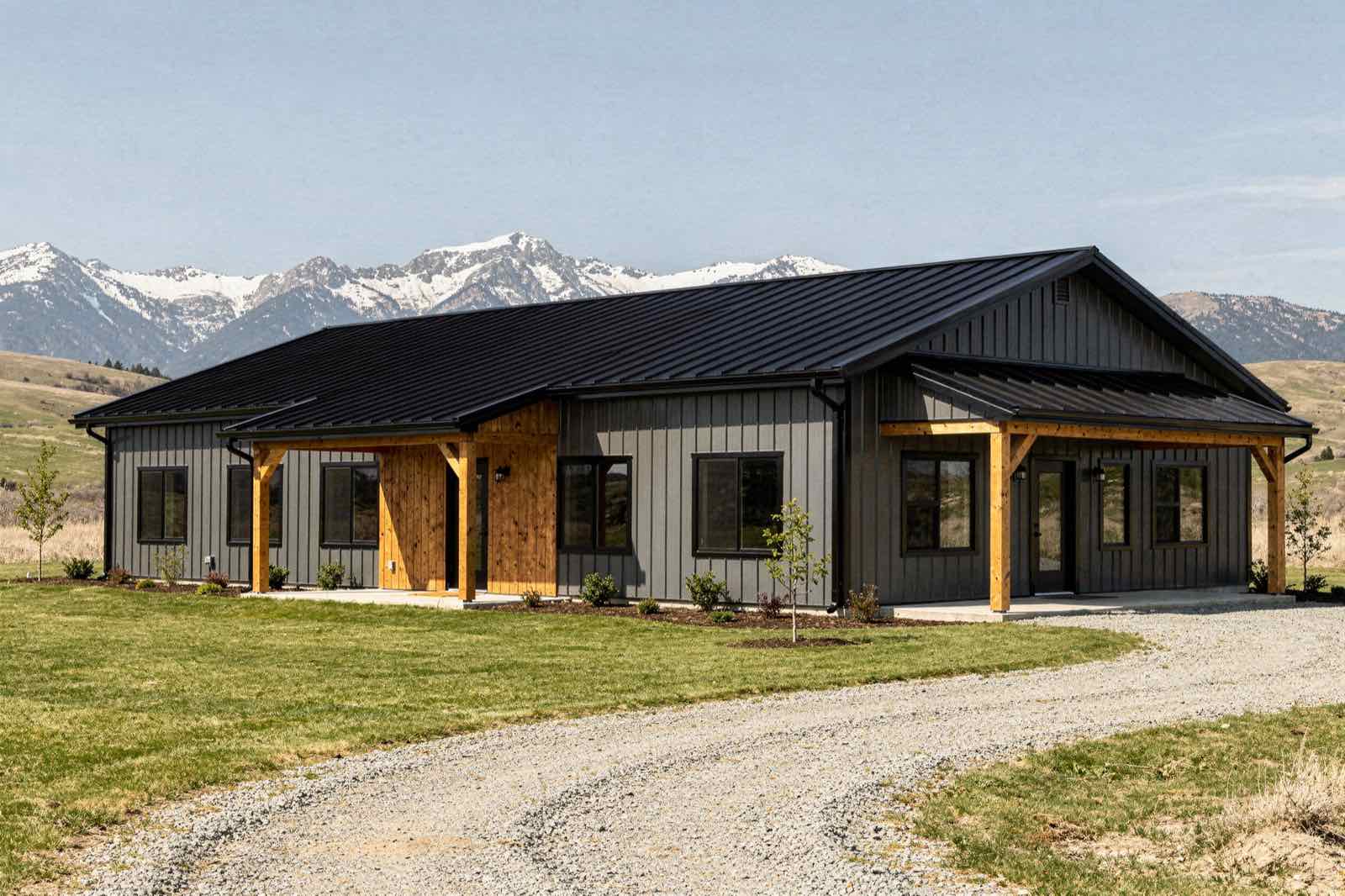

Modern Barndominium
Clean lines, minimal ornamentation, large windows, and often a mixed-material exterior (steel panel plus wood or stone accent). Achieved through window/door selection and cladding choice — the underlying post-frame structure doesn't change.

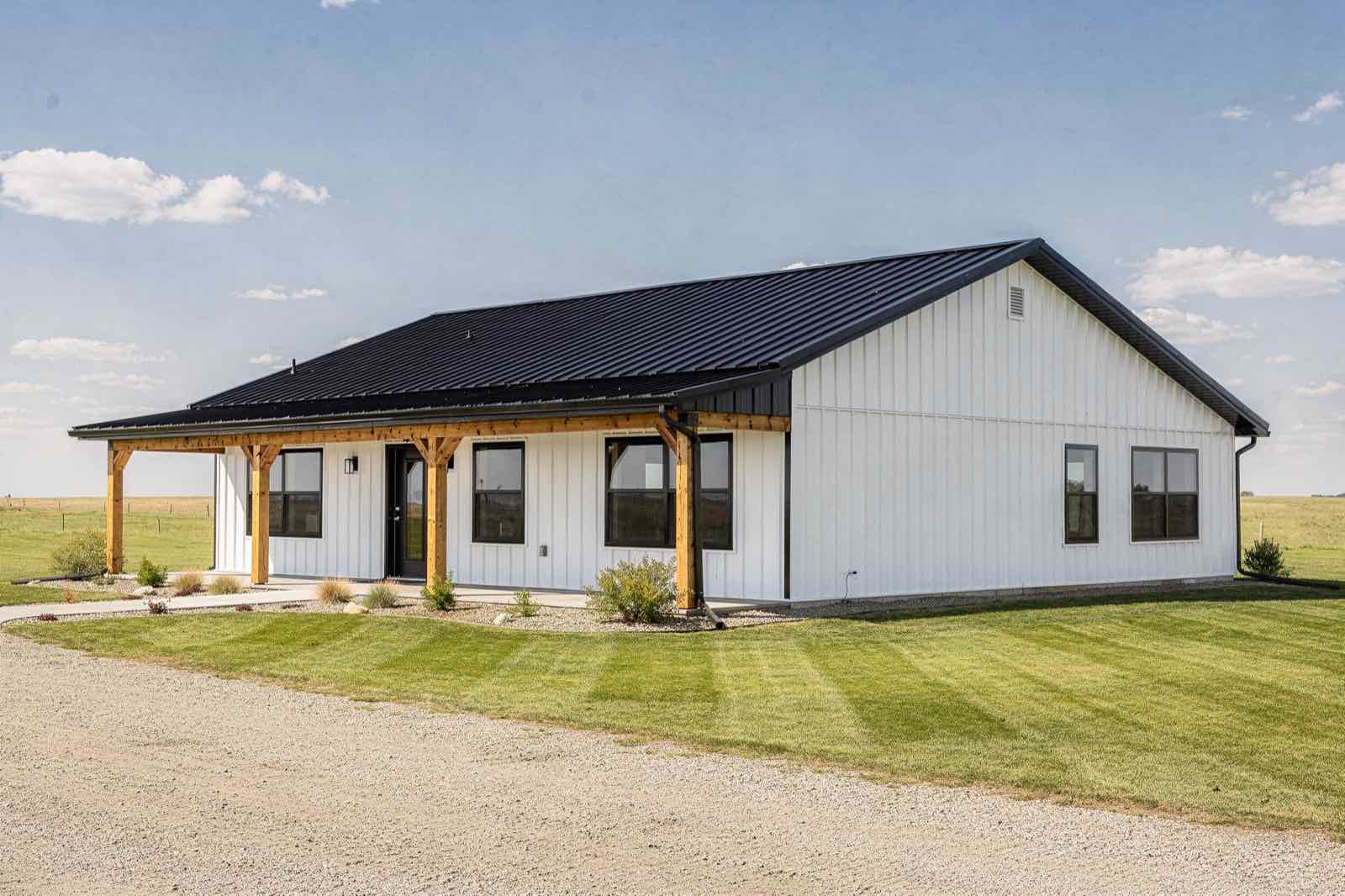

Farmhouse Barndominium
White or light-coloured board-and-batten-style panels, black metal roof, and a covered front porch — the most common "barndominium" aesthetic associated with the style's rise in popularity. A trim and porch package, not a different construction method.
Luxury Barndominium
Same post-frame shell, high-end interior finish level — custom cabinetry, upgraded flooring, taller ceilings, larger windows, and premium mechanical systems. The finish-level jump, not the construction method, is what pushes cost toward the top of a region's typical range.
Square Footage: What to Plan For
Living Area — Most barndominium living areas fall between 1,500 and 3,000 sq ft, with 2–4 bedrooms. Larger footprints are common but cost scales roughly linearly with finished square footage.
Shop or Garage Area — Shop space is genuinely cheaper to build than finished living area — it skips flooring, cabinetry, and most interior finish costs. Size it to what you'll actually use; oversized shop bays are a common source of buyer's remorse on the heating bill.
Ceiling Height — Post-frame construction makes taller ceilings genuinely affordable compared to stick-frame — many barndominium plans use 10–12 ft ceilings in the main living area for the open, airy feel the style is known for.
Plan These Before You Finalize the Layout
Mechanical Rough-In — Plumbing wet walls, HVAC duct runs, and electrical panel location all need to be locked into the floor plan before the slab is poured. Moving them after can cost $5,000–$20,000+.
In-Floor Radiant Heat Zones — If you're considering radiant heat, zone boundaries need to be marked on the floor plan before tubing goes into the slab — retrofitting it later means jackhammering concrete.
Post Spacing & Load Points — Post-frame structural posts land at fixed intervals — confirm your interior wall layout doesn't fight the post grid before finalizing room dimensions.
Shop Separation — If your plan includes an attached shop, fire-rated separation and independent ventilation are typically required by code — confirm requirements with your local building department.
Where to Actually Get a Barndominium Floor Plan
Your Kit Supplier — Many steel building kit suppliers include stock floor plans, or will modify one to your spec as part of the kit purchase. Start here if you're buying a kit.
A Draftsperson or Architect — For a fully custom layout, a local draftsperson or architect draws plans to your exact spec — genuinely worth it if your layout has unusual requirements your kit supplier's stock plans don't cover.
Your Builder — Design-build contractors often provide floor plans as part of their service — confirm what's included before signing a contract.
Once you have a plan in hand — or before you commission one — our 548+ item pre-pour checklist walks through every mechanical, structural, and finish decision that plan needs to account for.
Have a Floor Plan Already?
Get a design review that checks your mechanical rough-in, structural coordination, and slab embeds before you pour concrete.
Want a vetted local builder to reach out directly? Get matched for free.
Barndominium Floor Plans FAQ
Where do I get barndominium floor plans?
Most barndominium floor plans come from one of three sources: your steel building kit supplier (many include stock layouts with the kit), a local draftsperson or architect who draws custom plans to your spec, or your builder if they offer design-build service. IronField doesn't sell pre-drawn plans — this guide helps you plan the layout decisions before you commission one.
What's a typical barndominium floor plan size?
Most barndominium living areas run 1,500–3,000 sq ft, with an additional 600–2,000+ sq ft of shop or garage space for those who include one. Total footprint varies widely based on household size and whether the shop is attached or separate.
Should bedrooms be near or far from the shop?
Far. A split floor plan with the primary suite on one side and secondary bedrooms elsewhere, both away from a shop wall, cuts down on noise, fumes, and vibration transfer — a real, common regret when shop and bedroom share a wall.
What should I decide before finalizing a floor plan?
Plumbing wet-wall locations, HVAC duct runs and mechanical room placement, in-floor radiant heat zones, and electrical panel location all need to be locked in before the slab is poured — a floor plan finalized without these mapped out is the single most common source of expensive mid-build change orders.
How small can a barndominium floor plan be?
Small barndominiums commonly run 600–1,200 sq ft — popular as a starter home, guest house, or accessory dwelling. A compact footprint genuinely lowers both material and mechanical run costs, since plumbing, HVAC, and electrical all travel shorter distances.
Can a barndominium have a second story?
Yes, but a full two-story layout is genuinely less common than single-story or a partial 1.5-story loft in post-frame construction, since upper-floor loads change the structural post and truss engineering. Stacking upstairs plumbing directly above main-floor wet walls keeps costs down — offset routing is a real, avoidable expense.
How big is a 40x60 barndominium and what does it cost?
A 40x60 footprint is 2,400 sq ft — large enough for a full living area plus an attached shop or garage bay, or a spacious living-only layout. In Canada, fully finished costs typically run $150–$250 per square foot, putting a 40x60 build around $360,000–$600,000 depending on province, finishes, and mechanical complexity — use our cost estimator for a range specific to your province.
How big does a 4-bedroom barndominium floor plan need to be?
Most 4-bedroom barndominium floor plans run 2,200–2,800 sq ft, typically using a split layout with the primary suite separated from three secondary bedrooms. A split-bedroom or two-story layout both work well at this size — the deciding factor is usually lot footprint and whether you're including a shop bay.
How big does a 5-bedroom barndominium floor plan need to be?
Most 5-bedroom barndominium floor plans run 2,800–3,500+ sq ft. At this size, a 1.5-story or two-story layout genuinely helps — stacking bedrooms upstairs keeps the main-floor footprint (and foundation cost) from growing as fast as the bedroom count does.
What makes a barndominium "luxury"?
A luxury barndominium is the same post-frame construction with a high-end interior finish level — custom cabinetry, upgraded flooring, larger windows, higher ceilings, and premium mechanical systems (zoned HVAC, full radiant heat). The shell cost doesn't change much; the finish-level jump is what pushes total cost toward the top of a region's typical range.
